PRODUCT ITEM
- (P / NO)
- SPEC.
- 10mm Thread, IP67, Coaxial Cable Conn
- LYS CLASS NO.
- SMA825/10-OD
- PATENT
- Anti-Slip Annular Section, Ferrule / Retainer
• IP Rating：IP67 (In Mated Condition)
• Thread: 11.4mm; Panel: 2.2mm ; Total Length: 21.2mm
• Impedance: 50Ω; Finished: Gold or Nickel
• Frequency(GHz)：DC-6GHz, 12.4GHz, 18GHz
| LIH YEU SHENG Industries Co.,LTD. | ||
| Coaxial Cable | P /No. (SMA) | |
| RG178 | SMA825/10-178 | |
| Φ1.48 | SMA825/10-1.5 | |
| Φ1.37 | SMA825/10-1.37 | |
| Φ1.32 | SMA825/10-1.32 | |
| Φ1.13 | SMA825/10-1.13 | |
| Φ0.98 | SMA825/10-0.98 | |
| Φ0.81 | SMA825/10-0.85 | |
| Coaxial Cable | P /No. (RP-SMA) | |
| RG178 | RSMA825/10-178 | |
| Φ1.48 | RSMA825/10-1.5 | |
| Φ1.37 | RSMA825/10-1.37 | |
| Φ1.32 | RSMA825/10-1.32 | |
| Φ1.13 | RSMA825/10-1.13 | |
| Φ0.98 | RSMA825/10-0.98 | |
| Φ0.81 | RSMA825/10-0.85 | |

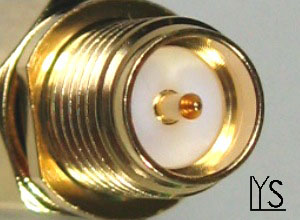

SMA&RP-SMA Female Bulkhead Crimp Type For Mini Coaxial Cable With O-Ring
