  • (P / NO)

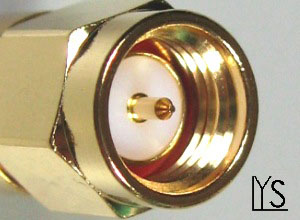

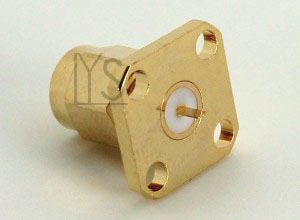

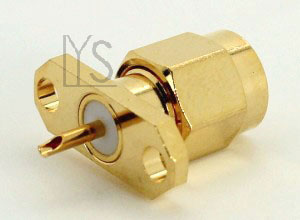

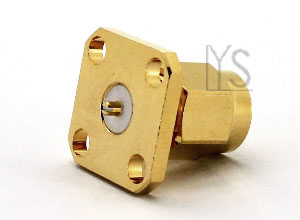

Terminal Slot Post SMA Male Connector

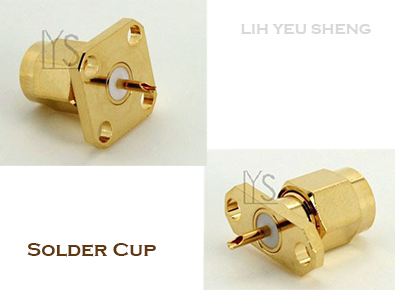

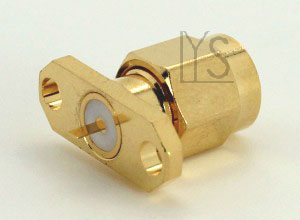

Terminal Solder Cup[ SMA Male Connector

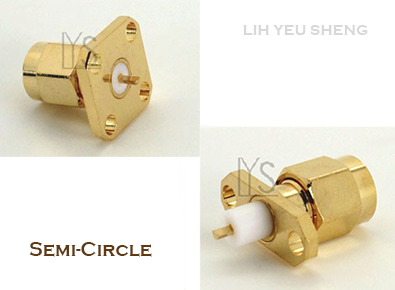

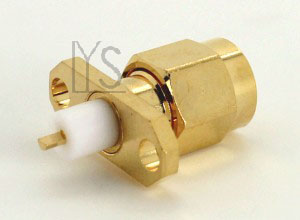

Semi-Circle SMA Male Connector

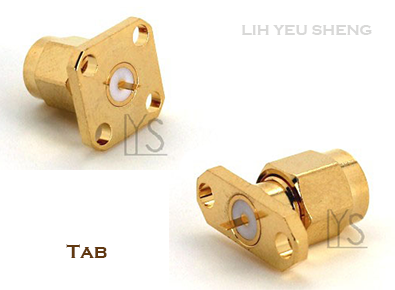

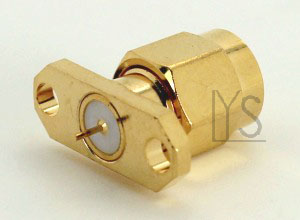

Terminal Tab SMA Male Connector

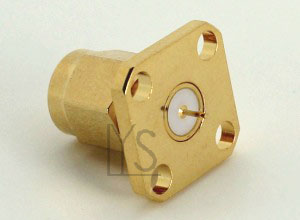

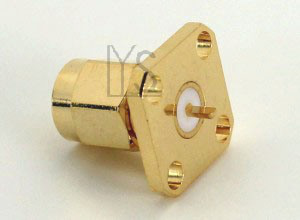

Terminal Thin Post SMA Male Connector

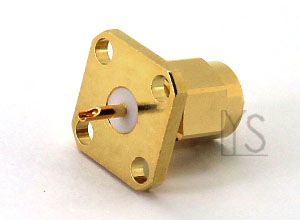

Terminal Slot Post SMA Male Connector
Terminal Solder Cup[ SMA Male Connector
Semi-Circle SMA Male Connector
Terminal Tab SMA Male Connector
Terminal Thin Post SMA Male Connector
SPEC.
多種尾端, Panel Hole, SMA Male connector
LYS CLASS NO.
SMA1X2B ~ 1X8B Series
PATENT
C-Ring,Anti-Slip Annular Section

● 防水等級：IP67  (SMA公母對接後)

● 阻抗：50Ω；電鍍：金或鎳

● 【使用頻率】DC ~ 6GHz, 12.4GHz, 18GHz

立宇盛工業股份有限公司
總長度 尾端/形狀x長度 產品編號(2孔) 產品編號(4孔) 產品照片
14.0 單溝/0.4x1.3 SMA112B-14 SMA102B-14


18.0 杯狀/Φ1.27x5.0 SMA113-18 SMA103-18
15.4 半圓/0.8x2.5 SMA116-15.4 SMA106-15.4
18.9 半圓/0.8x2.5
+ 絕緣外露/Φ4.1x4.1		 SMA116-18.9 SMA106-18.9
15.4 薄片/0.15x2.5 SMA117-15.4 SMA107-15.4
15.4 細針/Φ0.5x2.5 SMA118B-15.4 SMA108B-15.4
單位: mm

 ★ SMA Shell / SMA 公座扭殼，如需改為不銹鋼材質(SUS303)，可另外提出。

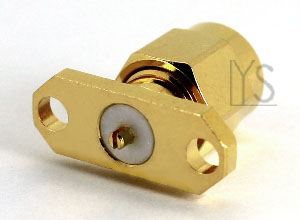

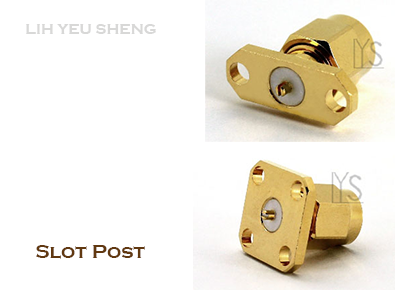

SMA Male 2 Holes Panel Terminal Slot Post
