SMA Male Panel 4 Hole Exposed PTFE Terminal Blunt Post
Panel 4 Hole Exposed PTFE SMA Male Terminal Blunt Post
對接介面 - SMA Male
對接介面 - RP-SMA Male
Terminal Blunt Post

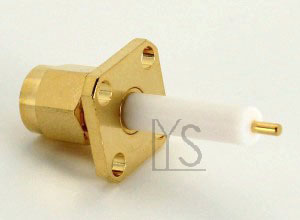

SMA Male Panel 4 Hole Exposed PTFE Terminal Blunt Post

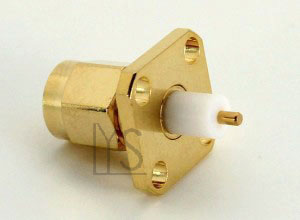

Panel 4 Hole Exposed PTFE SMA Male Terminal Blunt Post

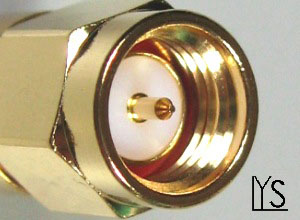

對接介面 - SMA Male

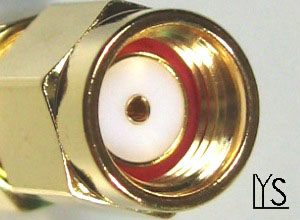

對接介面 - RP-SMA Male

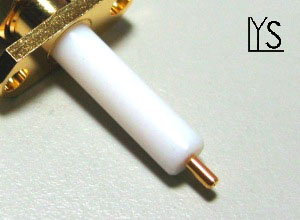

Terminal Blunt Post
SPEC.
圓針, 4 Holes Panel SMA(RP-SMA) Male Exposed PTFE connector
LYS CLASS NO.
SMA101 & RSMA101C Series
PATENT
C-Ring

● 防水等級：IP67  (SMA公母對接後)

● 阻抗：50Ω；電鍍：金或鎳

● 六角扭殼材質：黃銅、不鏽鋼

● 【使用頻率】DC ~ 6GHz, 12.4GHz, 18GHz

立宇盛工業股份有限公司


● 對接介面為「公座 公針」
總長度(mm) 絕緣外露長度 產 品 編 號
15.2 Φ4.1x 0 (mm) SMA101-15.2
17.9 Φ4.1x3.0(mm) SMA101-17.9
19.8 Φ4.1x5.0(mm) SMA101-19.8
30.8 Φ4.1x15.0(mm) SMA101-30.8
22.0 Φ4.1x7.0(mm) SMA101B-22/7.0


立宇盛工業股份有限公司


● 對接介面為「公座 母針」
總長度(mm) 絕緣外露長度 產 品 編 號
22.0 Φ4.1x6.5(mm) RSMA101C-22/6.5
23.0 Φ4.1x8.0(mm) RSMA101C-23/8.0

















SMA Male 4 Holes Panel Exposed PTFE Terminal Blunt Post    -Relative - 18GHz SMA-
