  • (P / NO)
SPEC.
.085｜.141 Cable, SMA Male S/T Solder connector
LYS CLASS NO.
SMA404-6.0 Series
PATENT
C-Ring

● 防水等級：IP67 (SMA公母對接後)

● 總長度: 15.05mm

● 阻抗：50Ω；電鍍：金或鎳

● 六角扭殼材質：黃銅、不鏽鋼

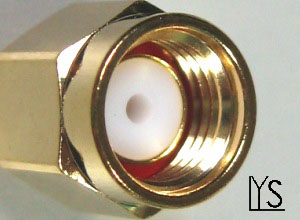

● 對接介面:SMA為「SMA公座.公針」,RSMA為「SMA公座.母針」

立宇盛工業股份有限公司

● 中心針(端子): 公針

線材種類 產品編號

六角扭殼

材質
.085 / RG405 SMA404-085/6.0 黃銅
.141 / RG402 SMA404-141/6.0 黃銅

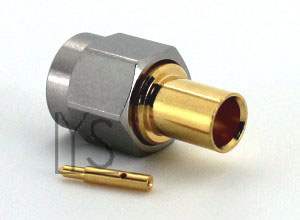

.085 / RG405 SMA404-085/6.0(ST) 不鏽鋼
.141 / RG402 SMA404-141/6.0(ST) 不鏽鋼

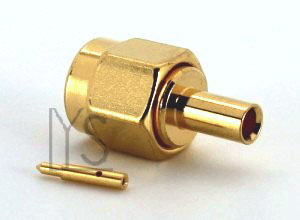

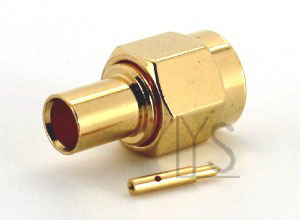

SMA Male Straight Solder Type For Semi-rigid / flex Cable
