  • (P / NO)
SPEC.
LMR200｜240｜300 Cable, SMA(RP-SMA) Male S/T Crimp connector
LYS CLASS NO.
SMA405 & RSMA405 -- For LMR Cable
PATENT
C-Ring

● 防水等級：IP67 (SMA公母對接後)

● 阻抗：50Ω；電鍍：金

● 使用頻率：DC ~ 6GHz, 12.4GHz

● SMA和RP-SMA差異?

立宇盛工業股份有限公司


● 中心針(端子): SMA為「公針」,RSMA為「 母針」
線材種類  總長度(mm) 產品編號(SMA) 產品編號(RP-SMA)
LMR100 16.7 SMA405-174(3.4) RSMA405-174(3.4)
LMR195 18.2 SMA405-195 RSMA405-195
LMR200 18.2 SMA405-M200 RSMA405-M200
LMR240 18.2 SMA405-M240 RSMA405-M240
LMR300 18.2 SMA405-M300 RSMA405-M300

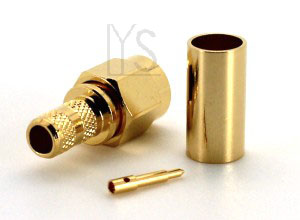

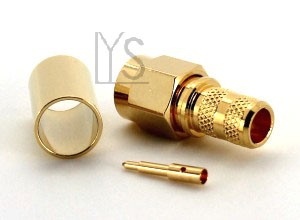

SMA Male Straight Crimp Type For LMR Cable
