  • (P / NO)
SPEC.
.047｜.085｜.141 Cable, SMA(RP-SMA) Male R/A Solder connector
LYS CLASS NO.
SMA454 & RSMA454 Series
PATENT
C-Ring

● 防水等級：IP67 (SMA公母對接後)

● 阻抗：50Ω；電鍍：金

● 使用頻率：DC ~ 6GHz, 12.4GHz

● SMA和RP-SMA差異?

立宇盛工業股份有限公司

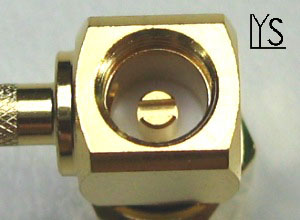

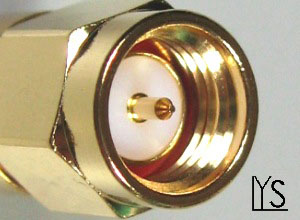

● 中心針(端子): SMA為「公針」,R SMA為 「 母針 」

線材種類 產品編號(SMA) 產品編號(RP-SMA)
.047 SMA454-047 RSMA454-047
.085 / RG405 SMA454-085 RSMA454-085
.141 / RG402 SMA454-141 RSMA454-141

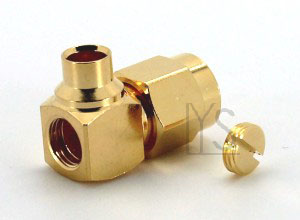

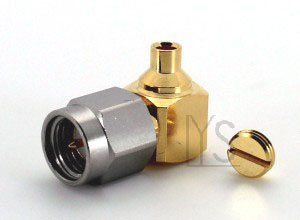

SMA Male Right Angle Solder Type for Semi-rigid / flex Cable
