  • (P / NO)
SPEC.
RG178｜Φ1.37｜Φ1.13｜Φ0.81 Cable, SMA(RP-SMA) Male R/A Crimp connector
LYS CLASS NO.
SMA455-OD & RSMA455-OD -- For Mini Coaxial
PATENT
C-Ring, Ferrule / Retainer

● 防水等級：IP67

● 阻抗：50Ω；電鍍：金或鎳

● 使用頻率：DC ~ 6GHz, 12.4GHz

● SMA和RP-SMA差異?

立宇盛工業股份有限公司

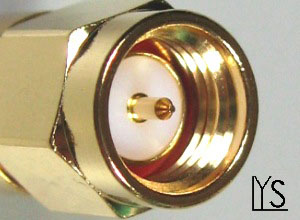

● 中心針(端子): SMA為「公針」,RSMA為 「 母針 」
線材種類 產品編號(SMA) 產品編號(RP-SMA)
RG178 SMA455-178 RSMA455-178
Φ1.48 SMA455-1.5 RSMA455-1.5
Φ1.37 SMA455-1.37 RSMA455-1.37
Φ1.32 SMA455-1.32 RSMA455-1.32
Φ1.13 SMA455-1.13 RSMA455-1.13
Φ0.98 SMA455-0.98 RSMA455-0.98
Φ0.81 SMA455-0.85 RSMA455-0.85

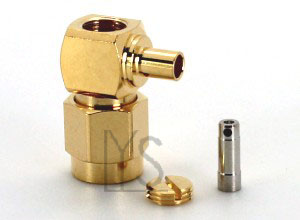

SMA Male Right Angle Crimp Type For Mini Coaxial Cable Connector
