  • (P / NO)

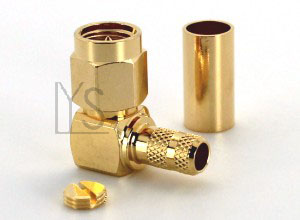

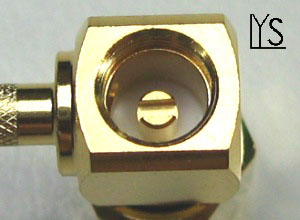

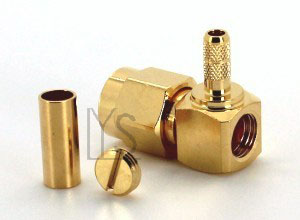

RG58｜174｜316 Cable, SMA(RP-SMA) Male R/A Crimp Connector

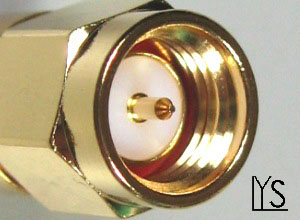

對接介面 - SMA公座, 公針

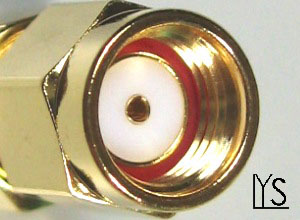

對接介面 - 反向SMA公座, 母針
RG58｜174｜316 Cable, SMA(RP-SMA) Male R/A Crimp connector
RG58｜174｜316 Cable, SMA(RP-SMA) Male R/A Crimp Connector
對接介面 - SMA公座, 公針
對接介面 - 反向SMA公座, 母針
RG58｜174｜316 Cable, SMA(RP-SMA) Male R/A Crimp connector
SPEC.
RG58｜174｜316 Cable, R/A, SMA Male Crimp
LYS CLASS NO.
SMA455 & RSMA455 Series -- For RG Cable
PATENT
C-Ring

● 防水等級：IP67 (SMA公母對接後)

● 阻抗：50Ω；電鍍：金或鎳

● 使用頻率：DC ~ 6GHz, 12.4GHz

● SMA和RP-SMA差異?

立宇盛工業股份有限公司
線材種類 產品編號(SMA) 產品編號(RP-SMA)
RG223 SMA455-223 RSMA455-223
RD223 SMA455-223(D) RSMA455-223(D)
RG58 SMA455-58 RSMA455-58
RG142 / 400 SMA455-142 RSMA455-142
RG174 / 316 SMA455-174 RSMA455-174
RG316 SMA455-174(Φ1.6) RSMA455-174(Φ1.6)
RD316 SMA455-174(D) RSMA455-174(D)



SMA Male Right Angle Crimp Type For RG Cable
