  • (P / NO)
SPEC.
10GHz SMA Male To SMA Female S/T Adapter
LYS CLASS NO.
SMA94A Series
FILE

測試報告_SMA94A／1_10G.pdf

測試報告_SMA94A1／1_10G.pdf

測試報告_SMA94A2／1_10G.pdf

測試報告_SMA94A3／1_10G.pdf

PATENT
C-Ring, Air Insulator

● 防水等級：IP67  (SMA公母對接後)

● 【使用頻率】DC ~ 10GHz

● 主體長度：18.0mm

● 阻抗：50Ω ｜扭殼材質：黃銅｜電鍍：金或鎳

● 此系列同款產品，另有單邊「反牙」、「快接式」轉接頭

立宇盛工業股份有限公司
 SMA和RP-SMA差異?
規 格 描 述 產 品 編 號

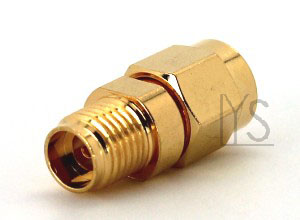

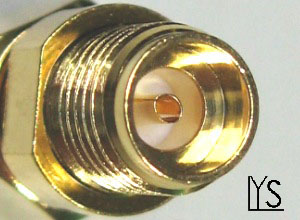

SMA Male To SMA Female

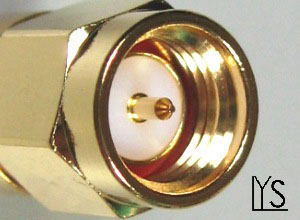

Infterface, SMA Male with Male Pin vs.

 SMA94A/1

RP-SMA Male To SMA Female

 vs.

 SMA94A1/1

SMA Male To RP-SMA Female

Infterface, SMA Male with Male Pin vs .

 SMA94A2/1

RP-SMA Male To RP-SMA Female

 vs .

 SMA94A3/1

SMA Male To SMA Female Straight Adapter -Relative - 18GHz SMA -
