產品項目
- (P / NO)
- SPEC.
- 6GHz｜10GHz, SMA Female TO N Male S/T Adapter
- LYS CLASS NO.
- S9N4Y, RS9N4Y Series
- PATENT
- C-Ring
● 阻抗：50Ω；電鍍：鎳
● 主體長度：27.7mm
| 立宇盛工業股份有限公司 | |||
SMA和RP-SMA差異? |
|||
| 規 格 描 述 | 頻 寬 | 駐波比 | 產品編號 |
|
SMA Female To N Male
|
0 - 6.0GHz | 1.2Max. | S9N4Y |
| 0 - 10.0GHz | 1.3Max. | S9N4YH | |
|
RP-SMA Female To N Male
|
0 - 6.0GHz | 1.2Max. | RS9N4Y |
| 0 - 10.0GHz | 1.2Max. | RS9N4YH | |
|
RP-SMA Female To RP-N Male
|
0 - 6.0GHz | RS9RN4YH | |
vs.
vs.

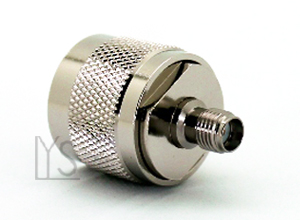

SMA Female TO N Male Straight Adapter
