產品項目
- (P / NO)
- SPEC.
- 6GHz｜10GHz, SMA Male TO N Male
- LYS CLASS NO.
- S4N4Y Series
- PATENT
- 空氣絕緣, 正反牙, C型環
● 防水等級：IP67 (SMA Male 公母對接後)
● 阻抗：50Ω；電鍍：鎳
● 主體長度：28.6mm
● 此系列同款產品，另有SMA端為單邊「反牙」、「快接式」轉接頭
| 立宇盛工業股份有限公司 | |||

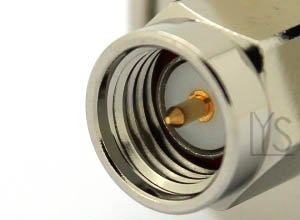

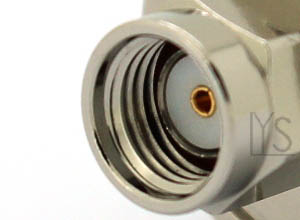

SMA和RP-SMA差異? |
|||
| 規 格 描 述 | 頻寬 | 駐波比 | 產品編號 |
|
SMA Male To N Male
|
0 - 6.0GHz | 1.2Max. | S4N4Y |
| 0 - 10.0GHz | 1.3Max. | S4N4YH | |
|
RP-SMA Male To N Male
|
0 - 6.0GHz | 1.2Max. | RS4N4Y |
| 0 - 10.0GHz | 1.25Max. | RS4N4YH | |
vs.
vs.

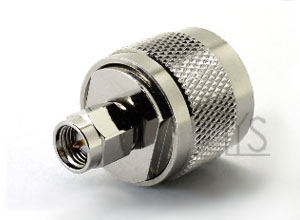

SMA Male TO N Male Straight Adapter
