產品項目

  • (P / NO)

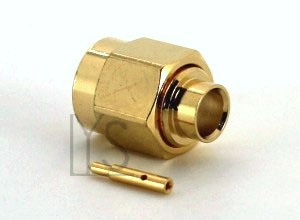

SMA Male Straight Solder for .141, RG402, SS402 Cable Connector

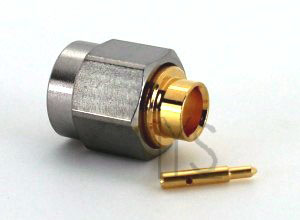

RP-SMA Male Straight Solder for .141, RG402, SS402 Cable Connector
SMA Male Straight Solder for .141, RG402, SS402 Cable Connector

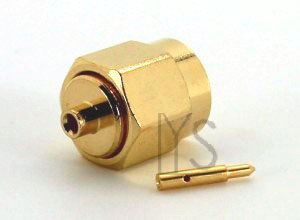

SMA Male Straight Solder for .085, RG405, SS405 Cable Connector
SMA Male Straight Solder for .047 Cable Connector
SMA Male Straight Solder for .141, RG402, SS402 Cable Connector
RP-SMA Male Straight Solder for .141, RG402, SS402 Cable Connector
SMA Male Straight Solder for .141, RG402, SS402 Cable Connector
SMA Male Straight Solder for .085, RG405, SS405 Cable Connector
SMA Male Straight Solder for .047 Cable Connector
SPEC.
.047｜.085｜.141 Cable, S/T, SMA Male Solder
LYS CLASS NO.
SMA404 & RSMA404 Series
PATENT
C-Ring

● 防水等級：IP67 (SMA公母對接後)

● 阻抗：50Ω；電鍍：金或鎳

● 使用頻率: DC ~ 6GHz, 12.4GHz, 18GHz

● SMA和RP-SMA差異?

立宇盛工業股份有限公司
線材種類 總長度 六角扭殼樣式 產品編號(SMA) 產品編號 (RP-SMA)
.047 11.2

標準旋式扭殼

 SMA404-047 --
.085｜RG405 SMA404-085 --
.141｜RG402 SMA404-141 --
.085｜RG405 12.5 標準旋式扭殼 -- RSMA404-085
.141｜RG402 -- RSMA404-141
.085｜RG405 15.05 標準旋式扭殼 SMA404-085/6.0 --
.141｜RG402 SMA404-141/6.0 --
.085｜RG405 12.8 扭殼固定不可旋轉 SMA4041-085 --
單位: mm

★ SMA Shell / SMA 公座扭殼，如需改為不銹鋼材質(SUS303)，可另外提出。

SMA Male Straight Solder Type For Semi-rigid / flex  Cable   -Relative - 18GHz SMA-
