PRODUCT ITEM
- (P / NO)
- SPEC.
- .047｜.085｜.141 Cable, S/T, SMA Male Solder
- LYS CLASS NO.
- SMA404 & RSMA404 Series
- PATENT
- C-Ring
● IP Rating：IP67 (In Mated Condition)
● Impedance：50Ω；Finish：Gold or Nickel
● Frequency(GHz)：DC-6GHz, 12.4GHz, 18GHz
| LIH YEU SHENG INDUSTRIES CO.,LTD. | ||||
| Cable Type | Total Length | SMA Shell Type | P / No.(SMA) | P / No. (RP-SMA) |
| .047 | 11.2 | Rotatable | SMA404-047 | -- |
| .085｜RG405 | SMA404-085 | -- | ||
| .141｜RG402 | SMA404-141 | -- | ||
| .085｜RG405 | 12.5 | Rotatable | -- | RSMA404-085 |
| .141｜RG402 | -- | RSMA404-141 | ||
| .085｜RG405 | 15.05 | Rotatable | SMA404-085/6.0 | -- |
| .141｜RG402 | SMA404-141/6.0 | -- | ||
| .085｜RG405 | 12.8 |
Fixed and Non-rotatable
|
SMA4041-085 | -- |
| Unit: mm | ||||
★ If need SMA Male Shell with Stainless Steel (SUS303), please let us know when enquiry.

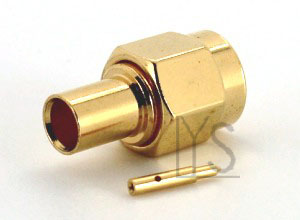

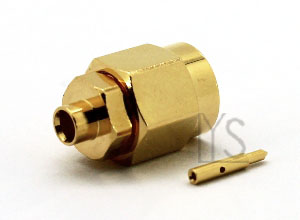

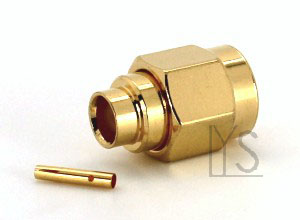

SMA Male Straight Solder Type For Semi-rigid / flex Cable -Relative - 18GHz SMA-
