  • (P / NO)
SPEC.
圓針｜杯狀, Panel Hole, R/A, SMA Female
LYS CLASS NO.
SMA6051、SMA6053 Series
PATENT
Positioning Insulator

● 阻抗：50Ω｜電鍍：金或鎳

● 實心導體尺寸：Φ1.27｜絕緣外露尺寸：Φ4.1

● 【使用頻率】DC ~ 6GHz, 12.4GHz

立宇盛工業股份有限公司
總長度 尾端/形狀x長度 產品編號(4孔)

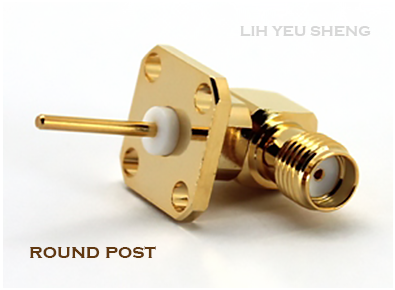

16.0 實心 /Φ1.27x2.8 SMA6051-16
16.0 實心 /Φ1.27x1.5
+ 絕緣外露/Φ4.1x1.3		 SMA6051-16/1.3
26.0 實心 /Φ1.27x11.5
+ 絕緣外露/Φ4.1x1.3		 SMA6051-26/1.3

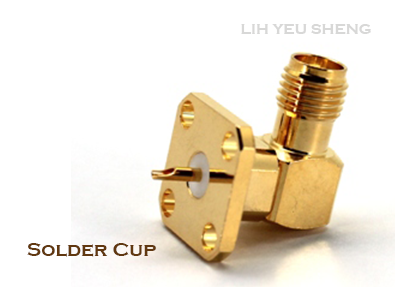

17.7 杯狀/ /Φ1.27x4.5 SMA6053-17.7
單位: mm

SMA Female Panel 4 Holes Right Angle Exposed PTFE Terminal Blunt Post
