● Impedance：50Ω｜Finish：Gold or Nickel

● Exposed Contact: Φ1.27｜PTFE: Φ4.1

● Frequency(GHz)：DC-6GHz, 12.4GHz

LIH YEU SHENG Industries Co.,Ltd.
Total L.	Terminal / Shape x Length	P / No.(4 Hole)
16.0	Round Post /Φ1.27x2.8	SMA6051-16
16.0	Round Post /Φ1.27x1.5 + Exposed PTFE/Φ4.1x1.3	SMA6051-16/1.3
26.0	Round Post /Φ1.27x11.5 + Exposed PTFE/Φ4.1x1.3	SMA6051-26/1.3
17.7	Solder Cup/ /Φ1.27x4.5	SMA6053-17.7
Unit: mm

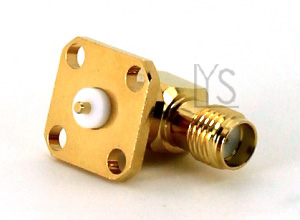

SMA Female Panel 4 Holes Right Angle Exposed PTFE Terminal Blunt Post
