SMA (RSMA) Female Panel 2 Hole Flange Mount with Blunt Post Pin connector
RSMA Female Panel 2 Hole Flange Mount with Blunt Post Pin connector
SMA Female Panel 2 Hole Flange Mount with Blunt Post Pin connector
SMA母座母針
反向SMA母座公針
SMA (RSMA) Female Panel 2 Hole Flange Mount with Blunt Post Pin connector
RSMA Female Panel 2 Hole Flange Mount with Blunt Post Pin connector
SMA Female Panel 2 Hole Flange Mount with Blunt Post Pin connector
SMA母座母針
反向SMA母座公針
SPEC.
圓針, Panel Hole, SMA Female
LYS CLASS NO.
SMA611B, 601B, RP Series
PATENT
Anti-Slip Annular Section

● 阻抗：50Ω｜電鍍：金或鎳

● 實心導體尺寸：Φ1.27｜絕緣外露尺寸：Φ4.1

● 【使用頻率】DC ~ 6GHz, 12.4GHz, 18GHz

● SMA和RP-SMA差異?

立宇盛工業股份有限公司

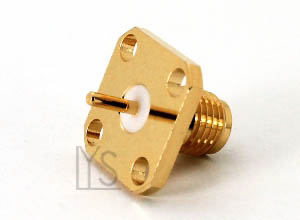

※ 僅露出實心導體
總長度 實心導體長度 產品編號(2孔) 產品編號(4孔)
12.0 2.5 SMA611B-12 SMA601B-12
14.6 5.1 SMA611B-14.6 SMA601B-14.6
15.5 6.0 SMA611B-15.5 SMA601B-15.5
16.4 6.9 SMA611B-16.4/0 SMA601B-16.4/0
18.3 8.8 SMA611B-18.3/0 SMA601B-18.3/0
★ RP-SMA Interface
總長度 實心導體長度 產品編號(2孔) 產品編號(4孔)
15.5 6.0 RSMA611B-15.5 RSMA601B-15.5



立宇盛工業股份有限公司

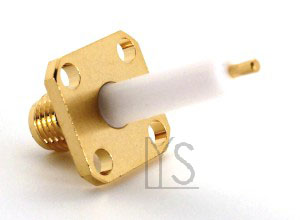

※ 露出絕緣
總長度 絕緣外露長度 產品編號(2孔) 產品編號(4孔)
14.6 1.0 SMA611B-14.6/1.0 SMA601B-14.6/1.0
14.6 3.0 SMA611B-14.6/3.0 SMA601B-14.6/3.0
15.5 4.1 SMA611B-15.5/4.1 SMA601B-15.5/4.1
16.4 0.5 SMA611B -16.4/0.5 SMA601B -16.4/0.5
16.4 5.0 SMA611B -16.4 SMA601B -16.4
17.4 5.0 SMA611B -17.4/5.0 SMA601B -17.4/5.0
18.8 6.0 SMA611B-18.8/6.0 SMA601B-18.8/6.0
18.8 6.5 SMA611B-18.8/6.5 SMA601B-18.8/6.5
19.8 8.0 SMA611B-19.8/8.0 SMA601B-19.8/8.0
20.5 8.0 SMA611B-20.5/8.0 SMA601B-20.5/8.0
21.0 7.0 SMA611B-21/7.0 SMA601B-21/7.0
25.4 7.0 SMA611B-25.4/7.0 SMA601B-25.4/7.0
26.5 10.0 SMA611B-26.5 SMA601B-26.5
27.4 15.0 SMA611B-27.4 SMA601B-27.4
27.4 12.5 SMA611B-27.4/12.5 SMA601B-27.4/12.5
★ RP-SMA Interface
總長度 絕緣外露長度 產品編號(2孔) 產品編號(4孔)
15.5 4.1 RSMA611B-15.5/4.1 RSMA601B-15.5/4.1
19.8 8.0 RSMA611B-19.8/8.0 RSMA601B-19.8/8.0
單位: mm

★ 如需改為不銹鋼材質(SUS303)主體，可另外提出。

SMA Female Panel 2 Holes (Exposed PTFE ) Terminal Blunt Post   -Relative - 18GHz SMA-
