LIH YEU SHENG INDUSTRIES CO.,LTD.

● Impedance：50Ω｜Finish：Gold or Nickel

● Exposed Contact: Φ1.27｜PTFE: Φ4.1

● Frequency(GHz)：DC-6GHz, 12.4GHz, 18GHz

LIH YEU SHENG Industries Co.,LTD

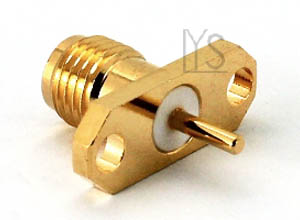

※ Exposed Contact Only
Total Length	Contact Length	P / No.(2 Hole)	P / No.(4 Hole)
12.0	2.5	SMA611B-12	SMA601B-12
14.6	5.1	SMA611B-14.6	SMA601B-14.6
15.5	6.0	SMA611B-15.5	SMA601B-15.5
16.4	6.9	SMA611B-16.4/0	SMA601B-16.4/0
18.3	8.8	SMA611B-18.3/0	SMA601B-18.3/0

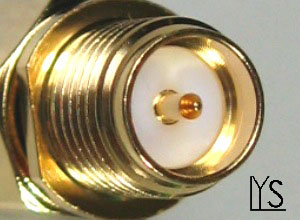

★ RP-SMA Interface
Total Length	Contact Length	P / No.(2 Hole)	P / No.(4 Hole)
15.5	6.0	RSMA611B-15.5	RSMA601B-15.5

LIH YEU SHENG Industries Co.,LTD

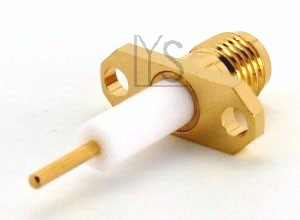

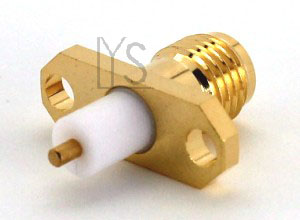

※ Exposed PTFE
Total Length	PTFE Length	P / No.(2 Hole)	P / No.(4 Hole)
14.6	1.0	SMA611B-14.6/1.0	SMA601B-14.6/1.0
14.6	3.0	SMA611B-14.6/3.0	SMA601B-14.6/3.0
15.5	4.1	SMA611B-15.5/4.1	SMA601B-15.5/4.1
16.4	0.5	SMA611B -16.4/0.5	SMA601B -16.4/0.5
16.4	5.0	SMA611B -16.4	SMA601B -16.4
17.4	5.0	SMA611B -17.4/5.0	SMA601B -17.4/5.0
18.8	6.0	SMA611B-18.8/6.0	SMA601B-18.8/6.0
18.8	6.5	SMA611B-18.8/6.5	SMA601B-18.8/6.5
19.8	8.0	SMA611B-19.8/8.0	SMA601B-19.8/8.0
20.5	8.0	SMA611B-20.5/8.0	SMA601B-20.5/8.0
21.0	7.0	SMA611B-21/7.0	SMA601B-21/7.0
25.4	7.0	SMA611B-25.4/7.0	SMA601B-25.4/7.0
26.5	10.0	SMA611B-26.5	SMA601B-26.5
27.4	15.0	SMA611B-27.4	SMA601B-27.4
27.4	12.5	SMA611B-27.4/12.5	SMA601B-27.4/12.5
★ RP-SMA Interface
Total Length	PTFE Length	P / No.(2 Hole)	P / No.(4 Hole)
15.5	4.1	RSMA611B-15.5/4.1	RSMA601B-15.5/4.1
19.8	8.0	RSMA611B-19.8/8.0	RSMA601B-19.8/8.0
Unit: mm

★ If need the Body with Stainless Steel (SUS303), please let us know when enquiry.
