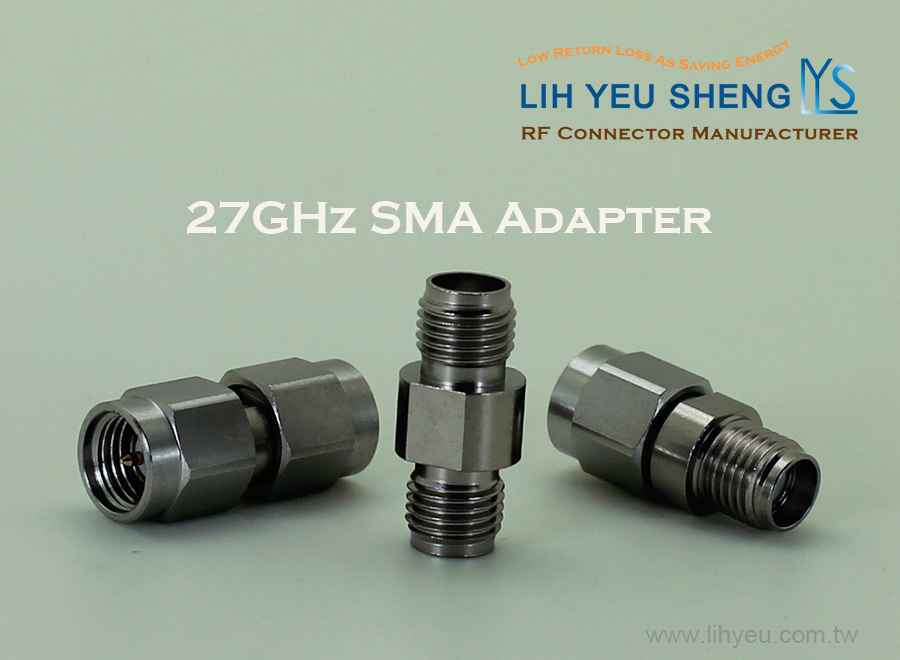

27GHz SMA Adapter
2025.08.08
/202508081620535604.png)
◆ Frequency：DC ~ 27GHz
◆ Impedance：50Ω
◆ Both End of Connect Type：SMA (Male/Female) 180 Degree
DC-27GHz ｜Electrical Performance
| Description | SMA Double Male End | SMA Double Female End | SMA Male To SMA Female |
| P/No. | SMA40AYH(ST)_27G | SMA90AYH_27G | SMA94AYH(ST)_27G |
| VSWR(Max.) | 1.2 | 1.3 | 1.2 |
| Performance |
|
|
|

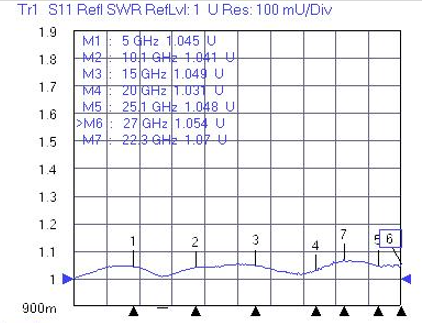

/SMA40AYH(ST)_27G_VSWR.png)
/SMA40AYH(ST)_27G_VSWR_S22.png)

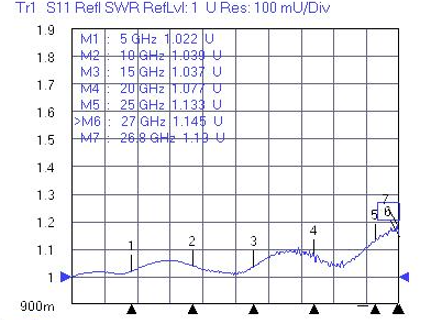

/SMA90AYH_27G_VSWR.png)

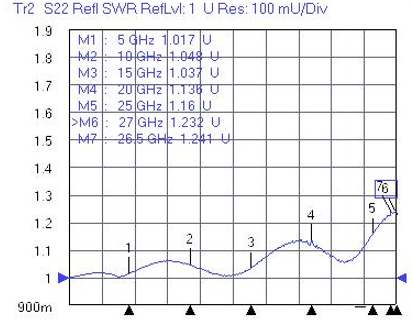

/SMA90AYH_27G_VSWR_S22.png)

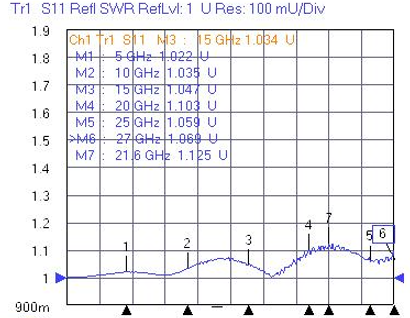

/SMA94AYH(ST)_27G_VSWR.png)

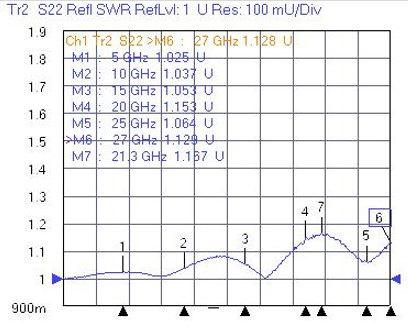

/SMA94AYH(ST)_27G_VSWR_S22.png)
Please feel free to contact us for further details!
TEL：+886-6-253-8122｜ Email: sales@lihyeu.com.tw
