LIH YEU SHENG INDUSTRIES CO.,LTD.

● Impedance：50Ω；Finish：Gold or Nickel

● Body Material：Stainless Steel

● Frequency(GHz)：DC-6GHz, 12.4GHz, 18GHz

LIH YEU SHENG Industries Co.,LTD.

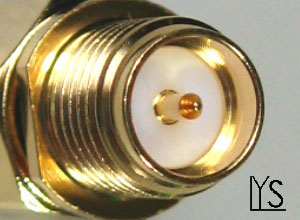

● SMA=SMA Female with Female Pin ● RSMA=SMA Female with Male Pin
※ Panel 2 Holes & Exposed Contact
Total L.(mm)	Exposed Contact	P / No.(SMA)	P / No. (RP-SMA)
12.0	Φ1.27x 2.5mm	SMA611B-12(ST)
14.6	Φ1.27x 5.1mm	SMA611B-14.6(ST)
15.5	Φ1.27x 6.0mm	SMA611B-15.5(ST)	RSMA611B-15.5(ST)

※ Panel 2 Holes & Exposed PTFE
Total L.(mm)	Exposed PTFE(mm)	P / No.	P / No. (RP-SMA)
14.6	1.0	SMA611B-14.6/1.0(ST)
14.6	3.0	SMA611B-14.6/3.0(ST)
15.5	4.1	SMA611B-15.5/4.1(ST)	RSMA611B-15.5/4.1(ST)
16.4	5.0	SMA611B-16.4(ST)
17.4	5.0	SMA611B-17.4/5.0(ST)
18.8	6.0	SMA611B-18.8/6.0(ST)
18.8	6.5	SMA611B-18.8/6.5(ST)
19.8	8.0	SMA611B-19.8/8.0(ST)	RSMA611B-19.8/8.0(ST)
20.5	8.0	SMA611B-20.5/8.0(ST)
26.5	10.0	SMA611B-26.5(ST)
27.4	15.0	SMA611B-27.4(ST)
27.4	12.5	SMA611B-27.4/12.5(ST)

SMA Female Panel 2 Holes Terminal Blunt Post -Relative - 18GHz SMA-
