PRODUCT ITEM
- (P / NO)
- SPEC.
- Exposed PTFE Only, 18GHz SMA Female 4 Holes Panel connector
- LYS CLASS NO.
- SMA600BH-Series
- FILE
-
Test_SMA Female Panel 2-4 Holes_BH_18GHz_Structure Only.pdf Test_SMA Female Panel 2-4 Holes_BH (ST)_18GHz_Structure Only.pdf
- PATENT
- Anti-Slip Annular Section
| LIH YEU SHENG Industries Co.,LTD. | |||
| ※ Product Info. | |||
| P / No. | Total L.(mm) | Exposed PTFE (mm) | Body Material/ Finished |
| SMA600BH-19.5/10 | 19.5 | 10.0 | Brass/ Gold 10u" |
| SMA600BH-21/11.5 | 21.0 | 11.5 | Brass/ Gold 10u" |
| SMA600BH-19.5/10(ST) | 19.5 | 10.0 | Stainless Steel/Passivated |
| SMA600BH-21/11.5(ST) | 21.0 | 11.5 | Stainless Steel/Passivated |
| ※ Common Info. | |||
| Impedance | Frequency | Contact Finished | Temp. Range |
| 50Ω | 0-18.0GHz | Gold 30u" | -65℃ ~ +155 ℃ |
※ Test Report: Structure test only, not included PCB and Solder.

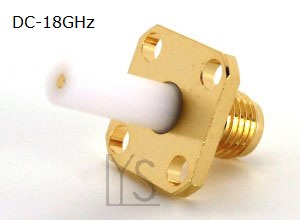

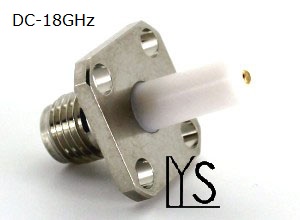

SMA Female Panel 4 Holes Exposed PTEF
