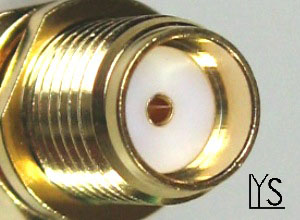

● 9.5mm Square Panel (= 9.5SQ.)

● Impedance：50Ω；Finish：Gold or Nickel

● Exposed Contact: Φ1.27｜PTFE: Φ4.1

● Frequency(GHz)：DC-6GHz, 12.4GHz, 18GHz

LIH YEU SHENG Industries Co.,LTD.

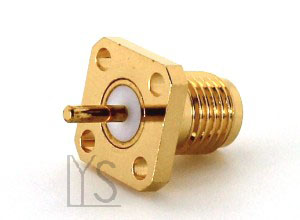

※ Exposed Contact Only
Total Length	Contact Length	P / No.(4 Hole)
12.0	2.5	SMA621B-12
14.6	5.1	SMA621B-14.6
15.5	6.0	SMA621B-15.5
16.4	6.9	SMA621B-16.4/0
18.3	8.8	SMA621B-18.3/0
★ RP-SMA Interface
Total Length	Contact Length	P / No.(4 Hole)
15.5	6.0	RSMA621B-15.5

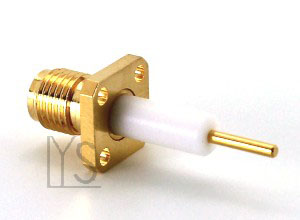

※ Exposed PTFE
Total Length	PTFE Length	P / No.(4 Hole)
14.6	1.0	SMA621B-14.6/1.0
14.6	3.0	SMA621B-14.6/3.0
15.5	3.0	SMA621B-15.5/3.0
15.5	4.1	SMA621B-15.5/4.1
16.4	0.5	SMA621B-16.4/0.5
16.4	5.0	SMA621B-16.4
18.8	5.0	SMA621B-17.4/5.0
18.8	6.0	SMA621B-18.8/6.0
18.8	6.5	SMA621B-18.8/6.5
19.8	8.0	SMA621B-19.8/8.0
20.5	8.0	SMA621B-20.5/8.0
21.0	7.0	SMA621B-21/7.0
26.5	10.0	SMA621B-26.5
27.4	15.0	SMA621B-27.4
27.4	12.5	SMA621B-27.4/12.5
★ RP-SMA Interface
Total Length	PTFE Length	P / No.(4 Hole)
15.5	4.1	RSMA621B-15.5/4.1
19.8	8.0	RSMA621B-19.8/8.0
Unit: mm

SMA Female 9.5mmSQ Panel 4 Holes (Exposed PTFE ) Terminal Blunt Post
