PRODUCT ITEM
- (P / NO)
- SPEC.
- Various Terminal Posts, 9.5SQ, Panel Hole, SMA Female
- LYS CLASS NO.
- SMA626B~SMA628B Series
- PATENT
- Anti-Slip Annular Section
● 9.5mm Squre Panel (= 9.5SQ.)
● Impedance：50Ω；Finish：Gold or Nickel
● Frequency(GHz)：DC-6GHz, 12.4GHz, 18GHz
| LIH YEU SHENG Industries Co.,LTD. | ||
| Total Length | Terminal / Shape x Length | P / No.(4 Hole) |
| 12.0 | Half Round / 0.8x2.5 | SMA626B-12 |
| 15.5 | Half Round/ Exposed PTFE 4.1 |
SMA626B-15.5 |
| 12.0 | Tab/ 0.15x2.5 | SMA627B-12 |
| 11.0 | Thin Post/ Φ0.3x1.5 | SMA628B-11 |
| 12.0 | Thin Post/ Φ0.5x2.5 | SMA627B-12 |
| Unit: mm | ||

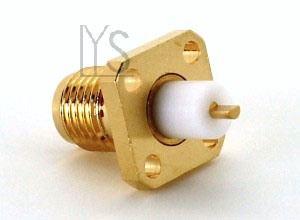

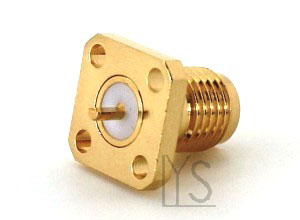

SMA Female 9.5mm SQ Panel 4 Holes (Exposed PTFE) Semicircle Post
