PRODUCT ITEM
- (P / NO)
- SPEC.

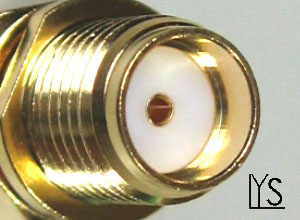

- Thin Post, 2 Holes Panel SMA Female connector
- LYS CLASS NO.
- SMA618B Series
- PATENT
- Anti-Slip Annular Section
| LIH YEU SHENG Industries Co.,LTD. | |||
| ※ Impedance：50Ω | |||

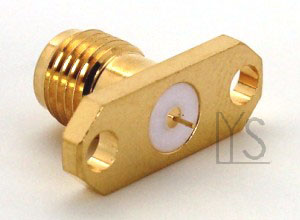

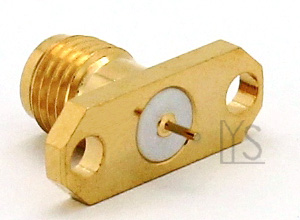

| ※ Panel 2 Holes & Exposed Contact | |||
| P / No. | Total L. | Exposed Contact | Body Material/ Finished |
| SMA618B-11 | 11.0mm | Φ0.3 x 1.5mm | Brass/ Gold |
| SMA618B-12 | 12.0mm | Φ0.5 x 2.5mm | Brass/ Gold |
| SMA618B-11(ST) | 11.0mm | Φ0.3 x 1.5mm | Stainless Steel/Passivated |
| SMA618B-12(ST) | 12.0mm | Φ0.5 x 2.5mm | Stainless Steel/Passivated |

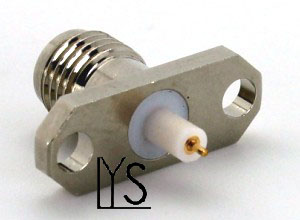

| ※ Panel 2 Holes & Exposed PTFE | |||
| P / No. | Total L. | Exposed PTFE | Body Material/ Finished |
| SMA618B-14.1/3.3 | 14.1mm | 3.3mm | Brass/ Gold |
| SMA618B-14.1/3.3(ST) | 14.1mm | 3.3mm | Stainless Steel |
SMA Female Panel 2 Holes (Exposed PTFE) Terminal Thin Post -Relative - 18GHz SMA-
