PRODUCT ITEM
- (P / NO)
- SPEC.
- Blunt Post , 4 Holes Panel SMA(RP-SMA) Female Exposed PTFE connector
- LYS CLASS NO.
- SMA601B Series
- PATENT
- Anti-Slip Annular Section
| LIH YEU SHENG Industries Co.,LTD. | ||
| ※ Impedance：50Ω；Finish：Gold or Nickel | ||

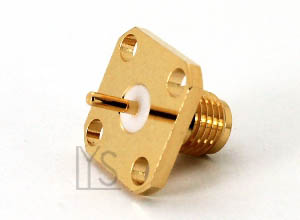

| ※ Panel 4 Holes & Exposed Contact | ||
| P / No. | Total L. (mm) | Exposed Contact (mm) |
| SMA601B-12 | 12.0 | Φ1.27x 2.5 |
| SMA601B-14.6 | 14.6 | Φ1.27x 5.1 |
| SMA601B-15.5 | 15.5 | Φ1.27x 6.0 |
| SMA601B-16.4/0 | 16.4 | Φ1.27x 6.9 |
| SMA601B-18.3/0 | 18.3 | Φ1.27x 8.8 |

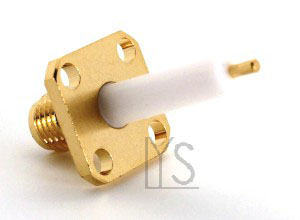

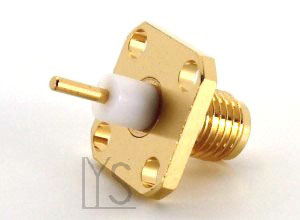

| ※ Panel 4 Holes & Exposed PTFE | ||
| P / No. | Total L. (mm) | Exposed PTFE (mm) |
| SMA601B-14.6/1.0 | 14.6 | Φ4.1x1.0 |
| SMA601B-14.6/3.0 | 14.6 | Φ4.1x 3.0 |
| SMA601B-15.5/3.0 | 15.5 | Φ4.1x 3.0 |
| SMA601B-15.5/4.1 | 15.5 | Φ4.1x 4.1 |
| SMA601B-16.4/0.5 | 16.4 | Φ4.1x 0.5 |
| SMA601B-16.4 | 16.4 | Φ4.1x 5.0 |
| SMA601B-17.4/5.0 | 17.4 | Φ4.1x 5.0 |
| SMA601B-18.8/6.0 | 18.8 | Φ4.1x 6.0 |
| SMA601B-18.8/6.5 | 18.8 | Φ4.1x 6.5 |
| SMA601B-19.8/8.0 | 19.8 | Φ4.1x 8.0 |
| SMA601B-20.5/8.0 | 20.5 | Φ4.1x 8.0 |
| SMA601B-21/7.0 | 21.0 | Φ4.1x 7.0 |
| SMA601B-25.4/7.0 | 25.4 | Φ4.1x 7.0 |
| SMA601B-26.5 | 26.5 | Φ4.1x 10.0 |
| SMA601B-27.4/12.5 | 27.4 | Φ4.1x 12.5 |
| SMA601B-27.4 | 27.4 | Φ4.1x 15.0 |
SMA Female Panel 4 Holes (Exposed PTFE ) Terminal Blunt Post -Relative - 18GHz SMA-
