PRODUCT ITEM
- (P / NO)
- SPEC.
- Edge, Φ0.6 Post, S/T, SMA Female for PCB
- LYS CLASS NO.
- SMA761-13 Series
- PATENT
• Total Length: 13.0mm | Length of Feet：4.0mm
• Impedance: 50Ω | Finished: Gold or Nickel
• Frequency(GHz)：DC-6GHz, 12.4GHz, 18GHz
| LIH YEU SHENG Industries Co.,LTD. | ||||
| Pitch of Feet | P / No. (SMA) | P / No. (RP-SMA) Contact Exposed Φ0.6 x 1.8 |
P / No. (RP-SMA) Contact Exposed Φ0.78 x 4.0 |
|
| 0.95 | SMA761-13/0.95 | RSMA761-13/0.95 | RSMA761/1-13/0.95 | |
| 1.73 | SMA761-13/1.73 | RSMA761-13/1.73 | RSMA761/1-13/1.73 | |
| Unit：mm | ||||

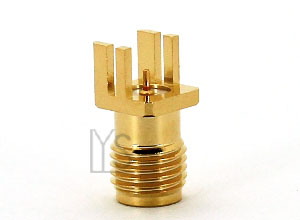

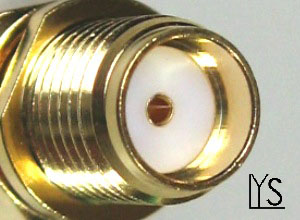

SMA&RP-SMA Female Edge Type For PCB Terminal Φ0.6mm Post
