LIH YEU SHENG INDUSTRIES CO.,LTD.

● Interface of Pin of Part Number:

SMA = SMA Female with Female Pin、RSMA = SMA Female with Male Pin

LIH YEU SHENG Industries Co.,LTD.
● Interface: SMA Female with Female Pin
Pitch of Feet (mm)	P/No. I Contact Exposed 1.5mm	P/No. II Contact Exposed 1.0mm
0.8	SMA761HH-10.5/0.8	SMA761HH-10.5/0.8-A
1.0	SMA761HH-10.5/1.0	SMA761HH-10.5/1.0-A
1.2	SMA761HH-10.5/1.2	SMA761HH-10.5/1.2-A
1.6	SMA761HH-10.5/1.6	SMA761HH-10.5/1.6-A

LIH YEU SHENG Industries Co.,LTD.
● Interface: SMA Female with Male Pin
Pitch of Feet (mm)	P/No. I Contact Exposed 1.5mm	P/No. II Contact Exposed 1.0mm
0.8	RSMA761HH-10.5/0.8	RSMA761HH-10.5/0.8-A
1.0	RSMA761HH-10.5/1.0	RSMA761HH-10.5/1.0-A
1.2	RSMA761HH-10.5/1.2	RSMA761HH-10.5/1.2-A
1.6	RSMA761HH-10.5/1.6	RSMA761HH-10.5/1.6-A

※ Common Info.

Frequency

Impedance

0-18.0GHz

50Ω

Body Material

Body Finished

Brass

Gold

Total Lenght (mm)

Temp. Range

10.5

-65℃ ~ +155 ℃

※ Test Report: Structure test only, not included PCB and Solder.

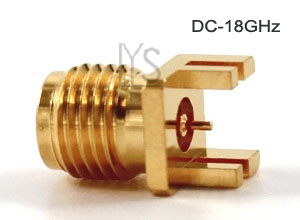

SMA Female Straight Edge Type For PCB Terminal Φ0.5mm Post
