PRODUCT ITEM
- (P / NO)
- SPEC.

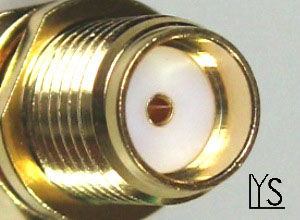

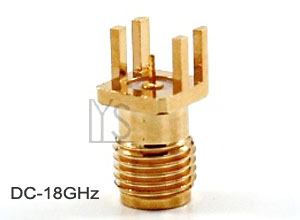

- Edge, 0.8｜1.0｜1.6｜1.73｜2.0mm PCB, 18GHz SMA Female S/T Terminal Φ0.5x0.35 Post for PCB connector
- LYS CLASS NO.
- SMA761PH-13 Series
- PATENT
|
LIH YEU SHENG Industries Co.,LTD. |
|
|
※ Product Info. |
|
|
Pitch of Feet |
P / No. |
|
for 0.8mm PCB |
SMA761PH-13/0.8 |
|
for 1.0mm PCB |
SMA761PH-13/1.0 |
|
for 1.6mm PCB |
SMA761PH-13/1.6 |
|
for 1.73mm PCB |
SMA761PH-13/1.73 |
|
for 2.0mm PCB |
SMA761PH-13/2.0 |
|
※ Common Info. |
|||||
|
Total L. |
Impedance |
Frequency |
Material |
Finished |
Temp. Range |
|
13.0mm |
50Ω |
0-18.0GHz |
Brass |
Gold |
-65℃ ~ +155 ℃ |
| ※ Test Report: Structure test only, not included PCB and Solder. | |||||

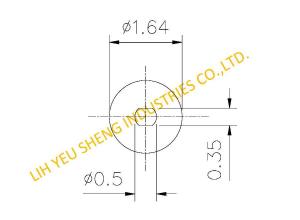

SMA Female Straight Edge Type For PCB Terminal Φ0.5x0.35 Post
