PRODUCT ITEM

SPEC.

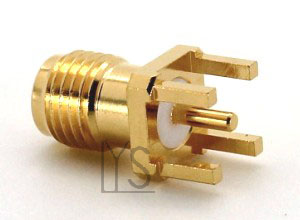

Through Hole, S/T, SMA Female for PCB
LYS CLASS NO.
SMA701 Series
PATENT

• Impedance:50Ω;Finish:Gold or Nickel

• Frequency(GHz):DC-6GHz, 12.4GHz, 18GHz

• Difference of SMA & RP-SMA

LIH YEU SHENG Industries Co.,LTD.
Total L.  Length of Feet P / NO. (SMA) P / NO. (RP-SMA)
13.5 3.9 SMA701-13.5 RSMA701-13.5
11.9 2.3 SMA701-11.9
10.85 1.25   RSMA701-10.85
Unit : mm



SMA&RP-SMA Female Straight For PCB  Relative - 18GHz SMA
