LIH YEU SHENG INDUSTRIES CO.,LTD.

• Total Length: 10.5mm | Feet Length: 3.0mm

• Impedance：50Ω | Finish：Gold or Nickel

• Frequency(GHz)：DC-6GHz, 12.4GHz, 18GHz

LIH YEU SHENG Industries Co.,LTD.
Pitch of Feet	P / No. (SMA) Normal Interface+Contact Exposed 1.5	P / No. (SMA) Normal Interface+Contact Exposed 2.7

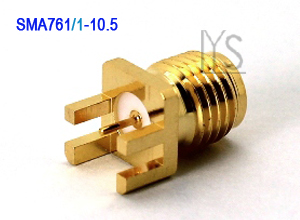

0.80	SMA761-10.5/0.8	SMA761/1-10.5/0.8
0.90	SMA761-10.5/0.9	SMA761/1-10.5/0.9
1.00	SMA761-10.5/1.0	SMA761/1-10.5/1.0
1.22	SMA761-10.5/1.22	SMA761/1-10.5/1.22
1.35	SMA761-10.5/1.35	SMA761/1-10.5/1.35
1.60	SMA761-10.5/1.6	SMA761/1-10.5/1.6
1.73	SMA761-10.5/1.73	SMA761/1-10.5/1.73
2.0	SMA761-10.5/2.0	SMA761/1-10.5/2.0
2.2	SMA761-10.5/2.2	SMA761/1-10.5/2.2
LIH YEU SHENG Industries Co.,LTD.
Pitch of Feet	P / No. (RP-SMA) Air Insulator+Contact Exposed 1.5	P / No. (RP-SMA) Air Insulator+Contact Exposed 1.0
0.6	RSMA761A-10.5/0.6	RSMA761A-10.5/0.6-A
0.62	RSMA761A-10.5/0.62	RSMA761A-10.5/0.62-A
0.7	RSMA761A-10.5/0.7	RSMA761A-10.5/0.7-A
0.8	RSMA761A-10.5/0.8	RSMA761A-10.5/0.8-A
1.0	RSMA761A-10.5/1.0	RSMA761A-10.5/1.0-A
1.22	RSMA761A-10.5/1.22	RSMA761A-10.5/1.22-A
1.6	RSMA761A-10.5/1.6	RSMA761A-10.5/1.6-A
1.73	RSMA761A-10.5/1.73	RSMA761A-10.5/1.73-A
2.0	RSMA761A-10.5/2.0	RSMA761A-10.5/2.0-A
Unit：mm

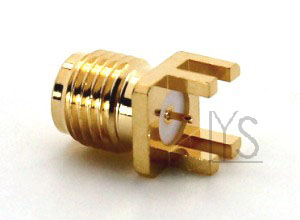

SMA&RP-SMA Female Edge Type For PCB Terminal Φ0.5mm Post -Relative - 18GHz SMA-
