QUICK LINK
PRODUCT ITEM
- (P / NO)
- SPEC.
- LMR100｜200｜240｜400 Cable, SMA Female S/T Bulkhead Crimp connector
- LYS CLASS NO.
- SMA805 -- For LMR Cable
- PATENT

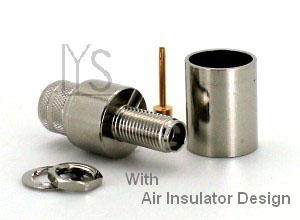

- Air Insulator

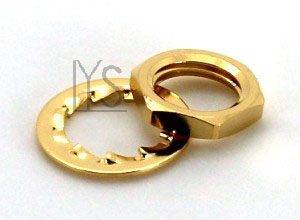

● Thread Length: 11.4mm; Panel: 3.4mm(8.0Hex.)
● Impedance：50Ω；Finish：Gold or Nickel
● Frequency(GHz)：DC-6GHz, 12.4GHz
| LIH YEU SHENG Industries Co.,LTD. | |||
|

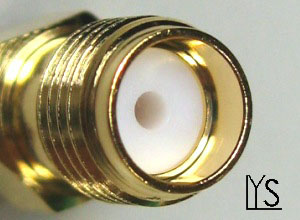

● SMA=SMA Female with Female Pin ● RSMA=SMA Female with Male Pin |
|||
| Cable Type | Total Length(mm) | P / No. (SMA) | P / No. (RP-SMA) |
| LMR400 | 27.9 | SMA805AY-M400(Ni) | RSMA805AY-M400(Ni) |
| LMR240 | 22.6 | SMA805-M240 | RSMA805-M240 |
| LMR200 | 22.6 | SMA805-M200 | RSMA805-M200 |
| LMR100 | 21.2 | SMA805-174(3.4) | RSMA805-174(3.4) |

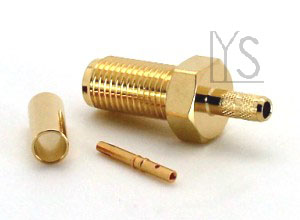

SMA Female Bulkhead Crimp Type For LMR Cable
