PRODUCT ITEM
- (P / NO)
- SPEC.
- RG178～0.81, Bulkhead, SMA Female Crimp
- LYS CLASS NO.
- SMA805 Series - for Min Coaxial Cable
- PATENT

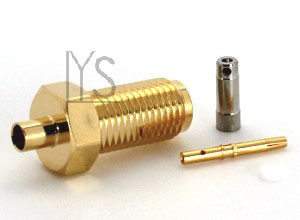

- Anti-Slip Annular Section ｜ Ferrule, Retainer
• Impedance：50Ω | Finish：Gold or Nickel
• Frequency(GHz)：DC-6GHz, 12.4GHz
| LIH YEU SHENG Industries Co.,LTD. | ||||
| Thread: 11.4 | ||||
| Cable Type | P / NO. (SMA) | P / NO. (RP-SMA) | ||
| RG178 | SMA805-178 | RSMA805-178 | ||
| Φ1.48 | SMA805-1.5 | RSMA805-1.5 | ||
| Φ1.37 | SMA805-1.37 | RSMA805-1.37 | ||
| Φ1.32 | SMA805-1.32 | RSMA805-1.32 | ||
| Φ1.13 | SMA805-1.13 | RSMA805-1.13 | ||
| Φ0.98 | SMA805-0.98 | RSMA805-0.98 | ||
| Φ0.81 | SMA805-0.85 | RSMA805-0.85 | ||
| LIH YEU SHENG Industries Co.,LTD. | ||||
| Thread | P / NO. (SMA) | P / NO. (RP-SMA) | ||
| 8.0 | SMA805/8.0-OD | RSMA805/8.0-OD | ||
| 9.5 | SMA805/9.5-OD | RSMA805/9.5-OD | ||
| 10 | SMA805/10-OD | RSMA805/10-OD | ||
| 11.4 | SMA805/2.3-OD | RSMA805/2.3-OD | ||
| 13 | SMA805A-OD | RSMA805A-OD | ||
| Unit：mm | ||||
| • "OD" means a series of different cable types, included RG178/ Φ1.5(also fit Φ1.48)/ Φ1.37/ Φ1.32/ Φ1.13/ Φ0.98/ Φ0.85(also fit Φ0.81). | ||||

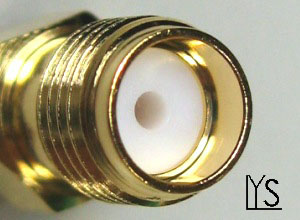

SMA Female Bulkhead Crimp Type For Mini Coaxial Cable Connector
