- SPEC.
- RG178｜Φ1.37｜Φ1.13｜Φ0.81, SMA Female S/T Bulkhead Crimp connector
- LYS CLASS NO.
- SMA805/2.3-OD
- PATENT
- Anti-Slip Annular Section, Ferrule / Retainer
| LIH YEU SHENG Industries Co.,LTD. | |
|
※ Thread: 11.4mm; Panel: 2.3mm ; Total Length: 17.0mm |
|
| ※ Impedance：50Ω；Finish：Gold or Nickel | |
| P /No. | Coaxial Cable |
| SMA805/2.3-178 | for RG178 |
| SMA805/2.3-1.5 |
for Φ1.5 |
| SMA805/2.3-1.37 |
for Φ1.37 |
| SMA805/2.3-1.32 |
for Φ1.32 |
| SMA805/2.3-1.13 |
for Φ1.13 |
| SMA805/2.3-0.98 |
for Φ0.98 |
| SMA805/2.3-0.85 |
for Φ0.81/ Φ0.85 |

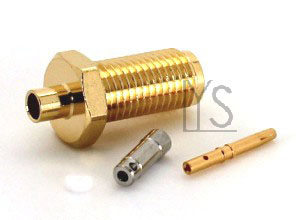

SMA Female Bulkhead Crimp Type For Mini Coaxial Cable Connector
