PRODUCT ITEM
- (P / NO)
- SPEC.
- RG178～0.81,R/A Bulkhead, SMA Female Crimp
- LYS CLASS NO.
- SMA855 Series -- for Min Coaxial Cable
- PATENT

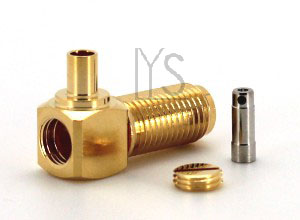

- Ferrule, Retainer
● Thread Length: 11.4mm
● Impedance：50Ω | Finish：Gold or Nickel
● Frequency(GHz)：DC-6GHz, 12.4GHz
| LIH YEU SHENG Industries Co.,Ltd. | ||
| No D-Flat. | ||
| Coaxial Cable | P / No. (SMA) | P / No. (RP-SMA) |
| RG178 | SMA855-178 | RSMA855-178 |
| Φ1.48 | SMA855-1.5 | RSMA855-1.5 |
| Φ1.37 | SMA855-1.37 | RSMA855-1.37 |
| Φ1.32 | SMA855-1.32 | RSMA855-1.32 |
| Φ1.13 | SMA855-1.13 | RSMA855-1.13 |
| Φ0.98 | SMA855-0.98 | RSMA855-0.98 |
| Φ0.81 | SMA855-0.85 | RSMA855-0.85 |
| LIH YEU SHENG Industries Co.,Ltd. | ||
| With D-Flat | ||
| Coaxial Cable | P / No. (SMA) | P / No. (RP-SMA) |
| RG178 | SMA855D-178-A | RSMA855D-178-A |
| Φ1.48 | SMA855D-1.5-A | RSMA855D-1.5-A |
| Φ1.37 | SMA855D-1.37-A | RSMA855D-1.37-A |
| Φ1.32 | SMA855D-1.32-A | RSMA855D-1.32-A |
| Φ1.13 | SMA855D-1.13-A | RSMA855D-1.13-A |
| Φ0.98 | SMA855D-0.98-A | RSMA855D-0.98-A |
| Φ0.81 | SMA855D-0.85-A | RSMA855D-0.85-A |

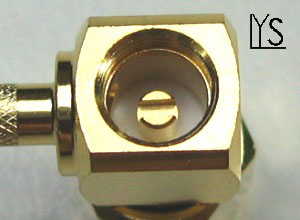

SMA&RP-SMA Female Right Angle Bulkhead Crimp Type For Mini Coaxial Cable
