PRODUCT ITEM
- (P / NO)
- SPEC.
- For Cable, Bulkhead no Flat, SMA Female Crimp
- LYS CLASS NO.
- SMA835N Series–no D-Flat for Cable
- PATENT
- Anti-Slip Annular Section,Ferrule, Retainer

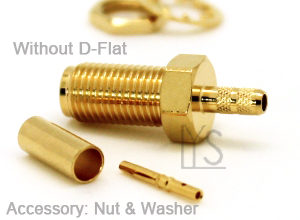

● Thread Length: 11.4mm | Panel: 3.4mm(8.0Hex.) | Without D-Flat
● Impedance：50Ω | Finish：Gold or Nickel
● Frequency(GHz)：DC-6GHz, 12.4GHz
| LIH YEU SHENG Industries Co.,LTD. | ||||
| Cable Type | Total L. | P /No. (SMA) | ||
| RG58 | 22.6 | SMA835N-58 | ||
| RG142/RG400 | 22.6 | SMA835N-142 | ||
| RG174/RG316 | 21.2 | SMA835N-174 | ||
| RG223 | 22.6 | SMA835N-223 | ||
| RD223 | 22.6 | SMA835N-223(D) | ||
| RD316 | 21.2 | SMA835N-174(D) | ||
| LMR100 | 22.6 | SMA835N-100 | ||
| LMR200 | 22.6 | SMA835N-M200 | ||
| RG178 | 18.3 | SMA835N-178 | ||
| Φ1.48 | 18.3 | SMA835N-1.5 | ||
| Φ1.37 | 18.3 | SMA835N-1.37 | ||
| Φ1.32 | 18.3 | SMA835N-1.32 | ||
| Φ1.13 | 18.3 | SMA835N-1.13 | ||
| Φ0.98 | 18.3 | SMA835N-0.98 | ||
| Φ0.81 | 18.3 | SMA835N-0.85 | ||
| Unit：mm | ||||

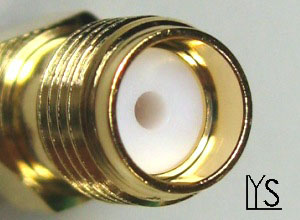

SMA Female Bulkhead Crimp Type For Cable
