PRODUCT ITEM
- (P / NO)
- SPEC.

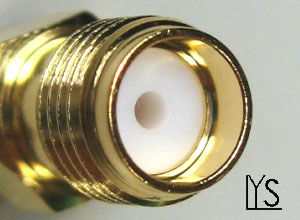

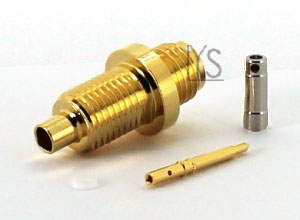

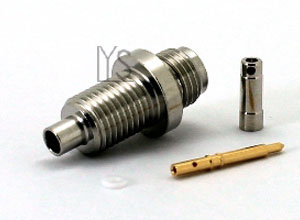

- RP-SMA Female Bulkhead Front Mount Crimp Type For Mini Coaxial Cable Connector
- LYS CLASS NO.
- RSMA805C/8.0-OD
- PATENT
- Ferrule / Retainer
| LIH YEU SHENG Industries Co.,LTD. | |
| ※ Rear Mount Thread：8.0mm；Panel：Φ9.0 * 2.0mm ; Total Length：18.2mm | |
| ※ Impedance：50Ω；Finish：Gold or Nickel | |
| P /No. | Coaxial Cable |
| RSMA805C/8.0-178 | RG178 |
| RSMA805C/8.0-1.5 | Φ1.48 |
| RSMA805C/8.0-1.37 | Φ1.37 |
| RSMA805C/8.0-1.32 | Φ1.32 |
| RSMA805C/8.0-1.13 | Φ1.13 |
| RSMA805C/8.0-0.98 | Φ0.98 |
| RSMA805C/8.0-0.85 | Φ0.81 |
RP-SMA Female Bulkhead Front Mount Crimp Type For Mini Coaxial Cable Connector
