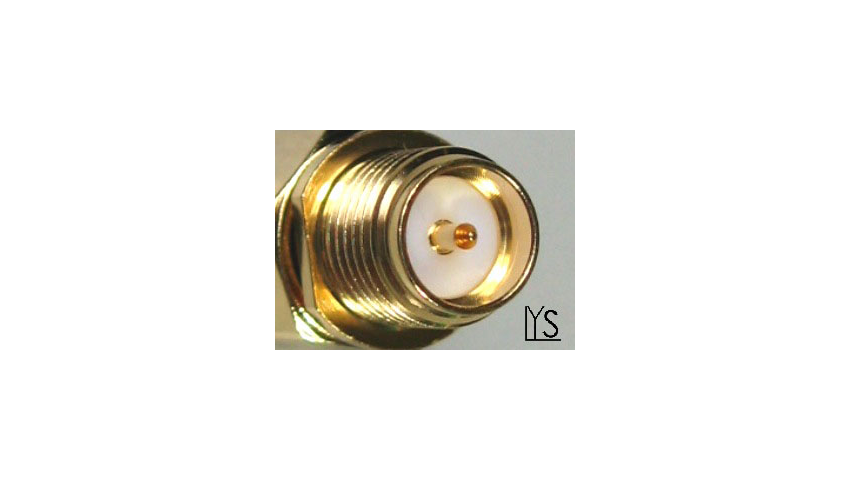

SPEC.: Round Post, IP67, Panel Hole, SMA Female With O-Ring

LYS CLASS NO.: SMA6001B Series

PATENT: Anti-Slip Annular Section

● IP Rating：IP67 (In Mated Condition)

● Impedance：50Ω｜Finish：Gold or Nickel

● Exposed Contact: Φ1.27｜PTFE: Φ4.1

● Frequency(GHz)：DC-6GHz, 12.4GHz, 18GHz

● Difference of SMA & RP-SMA

LIH YEU SHENG Industries Co.,LTD.

※ Exposed Contact Only

Total Length

Exposed Contact Length

P / No.(4 Hole)

12.0

2.5

SMA6001B-12

14.6

5.1

SMA6001B-14.6

15.5

6.0

SMA6001B-15.5

16.4

6.9

SMA6001B-16.4

18.3

8.8

SMA6001B-18.3/0

★ RP-SMA Interface

Total Length

Exposed Contact Length

P / No.(4 Hole)

15.5

6.0

RSMA6001B-15.5

※ Exposed PTFE

Total Length

Exposed PTFE Length

P / No.(4 Hole)

14.6

1.0

SMA6001B-14.6/1.0

14.6

3.0

SMA6001B-14.6/3.0

15.5

4.1

SMA6001B-15.5/4.1

16.4

0.5

SMA6001B-16.4/0.5

16.4

5.0

SMA6001B-16.4

17.4

5.0

SMA6001B-17.4/5.0

18.8

6.0

SMA6001B-18.8/6.0

18.8

6.5

SMA6001B-18.8/6.5

19.8

8.0

SMA6001B-19.8/8.0

20.5

8.0

SMA6001B-20.5/8.0

21.0

7.0

SMA6001B-21/7.0

25.4

7.0

SMA6001B-25.4/7.0

26.5

10.0

SMA6001B-26.5

27.4

15.0

SMA6001B-27.4

27.4

12.5

SMA6001B-27.4/12.5

★ RP-SMA Interface

Total Length

Exposed PTFE Length

P / No.(4 Hole)

15.5

4.1

RSMA6001B-15.5/4.1

16.4

5.0

RSMA6001B-16.4

19.8

8.0

RSMA6001B-19.8/8.0

24.9

10.0

RSMA6001B-24.9/10

Unit：mm

SMA Female Panel 4 Holes W/O-Ring (Exposed PTFE ) Terminal Blunt Post
