PRODUCT ITEM
- (P / NO)
- SPEC.
- for Cable, IP67, BH_M7.0x0.5, SMA Female Crimp
- LYS CLASS NO.

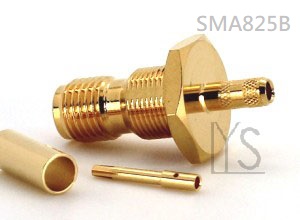

- SMA825B Series - two kinds of threads
- PATENT
• IP Rating：IP67
• Impedance: 50Ω; Finished: Gold or Nickel
• Frequency(GHz)：DC-6GHz, 12.4GHz, 18GHz
| LIH YEU SHENG Industries Co.,LTD. | |||
| Thread.：13.0 | |||
| Cable | Total L. | P /No. (SMA) | P /No. (RP-SMA) |
| RG174/RG316 | 21.5 | SMA825B-174 | RSMA825B-174 |
| RD316 | 21.5 | RSMA825B-174(D) | |
| LMR100 | 21.5 | SMA825B-174(3.4) | RSMA825B-174(3.4) |
| Unit：mm | |||
| ● The D-Flat is on the second thread, and the Nut & Washer also match the same thread. | |||

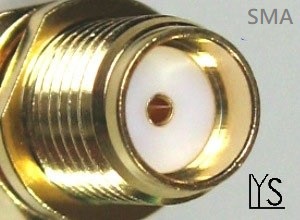

SMA&RP-SMA Female Bulkhead Crimp Type For Cable With O-Ring
