PRODUCT ITEM
- (P / NO)
- SPEC.
- RG178～0.81, IP67, SMA Female Crimp
- LYS CLASS NO.
- SMA825D Series–With 11HEX Nut
- PATENT
• IP Rating：IP67 (In Mated Condition)
• Thread: 11.4mm; Panel: 3.4mm ; Total Length: 18.3mm
• Impedance: 50Ω; Finished: Gold or Nickel
• Frequency(GHz)：DC-6GHz, 12.4GHz, 18GHz
| LIH YEU SHENG Industries Co.,LTD. | ||
| Thread：11.4 | Panel：3.4*11.0HEX | ||
| Coaxial Cable | P / NO. (SMA) | P / NO. (RP-SMA) |
| RG178 | SMA825D-178 | RSMA825D-178 |
| Φ1.48 | SMA825D-1.5 | RSMA825D-1.5 |
| Φ1.37 | SMA825D-1.37 | RSMA825D-1.37 |
| Φ1.32 | SMA825D-1.32 | RSMA825D-1.32 |
| Φ1.13 | SMA825D-1.13 | RSMA825D-1.13 |
| Φ0.98 | SMA825D-0.98 | RSMA825D-0.98 |
| Φ0.81 | SMA825D-0.85 | RSMA825D-0.85 |

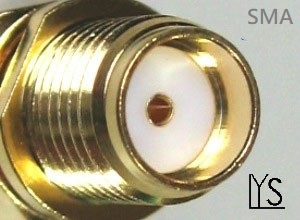

SMA&RP-SMA Female Bulkhead Crimp Type For Mini Coaxial Cable With O-Ring
