PRODUCT ITEM
- (P / NO)
- SPEC.
- for Cable, IP67, SMA Female Crimp
- LYS CLASS NO.
- SMA825/2.2-For Cable
- PATENT
• IP Rating：IP67
• Impedance: 50Ω; Finished: Gold or Nickel
• Frequency(GHz)：DC-6GHz, 12.4GHz, 18GHz
| LIH YEU SHENG Industries Co.,LTD. | |||
| Thread：11.4 | Panel：2.2*11.0HEX | |||
| Coaxial Cable | P /No. (SMA) | P /No. (RP-SMA) | |
| RG174/316 | SMA825/2.2-174 | RSMA825/2.2-174 | |
| RD316 | RSMA825/2.2-174(D) | ||
| LMR100 | SMA825/2.2-174(3.4) | RSMA825/2.2-174(3.4) | |
| Coaxial Cable | P /No. (SMA) | P /No. (RP-SMA) | |
| RG178 | SMA825/2.2-178 | RSMA825/2.2-178 | |
| Φ1.48 | SMA825/2.2-1.5 | RSMA825/2.2-1.5 | |
| Φ1.37 | SMA825/2.2-1.37 | RSMA825/2.2-1.37 | |
| Φ1.32 | SMA825/2.2-1.32 | RSMA825/2.2-1.32 | |
| Φ1.13 | SMA825/2.2-1.13 | RSMA825/2.2-1.13 | |
| Φ0.98 | SMA825/2.2-0.98 | RSMA825/2.2-0.98 | |
| Φ0.81 | SMA825/2.2-0.85 | RSMA825/2.2-0.85 | |
| Unit：mm | |||

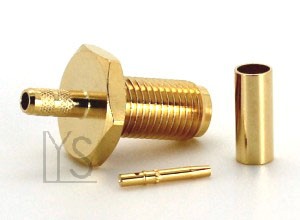

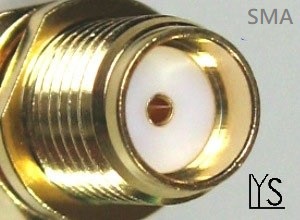

SMA&RP-SMA Female Bulkhead Crimp Type For Mini Coaxial Cable With O-Ring
