PRODUCT ITEM
- (P / NO)
- SPEC.

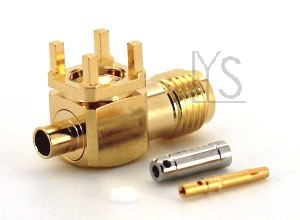

- RG178～0.81, for PCB & Cable, SMA Female Crimp
- LYS CLASS NO.
- SMA755 Series- for Min Coaxial Cable
- PATENT
• Total Length: 18.1mm
• Impedance: 50Ω; Finished: Gold or Nickel
• Frequency(GHz)：DC-6GHz, 12.4GHz, 18GHz
| LIH YEU SHENG Industries Co.,LTD. | ||||||
| Height | P / NO. (SMA) | P / NO. (RP-SMA) | ||||
| 6.4 | SMA755A-OD | RSMA755A-OD | ||||
| 5.5 | SMA755B-OD | RSMA755B-OD | ||||
| 4.4 | SMA755C-OD | RSMA755C-OD | ||||
| 5.8 | SMA755D-OD | RSMA755D-OD | ||||
| Unit：mm | ||||||
| • "OD" means a series of different cable types, included RG178/ Φ1.5(also fit Φ1.48)/ Φ1.37/ Φ1.32/ Φ1.13/ Φ0.98/ Φ0.85(also fit Φ0.81). | ||||||
| • e.g.1. Your requirements are included Height--5.5mm & cable type--Φ1.48 → P/No.: SMA755B-1.5 | ||||||

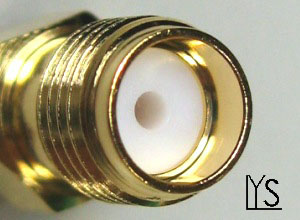

SMA Female For PCB & Mini Coaxial Cable Connector
