PRODUCT ITEM
- (P / NO)
- SPEC.
- RG178～0.81, for PCB & Cable, SMA Female Crimp
- LYS CLASS NO.
- SMA755/11.4-Mini Coaxial Cable
- PATENT
• Total Length: 21.9 | Thread：11.4
• Impedance: 50Ω; Finished: Gold
• Frequency(GHz)：DC-6GHz, 12.4GHz
| LIH YEU SHENG Industries Co.,LTD. | ||
| Cable | P / NO. (SMA) | P / NO. (RP-SMA) |
| RG178 | SMA755/11.4-178 | RSMA755/11.4-178 |
| Φ1.48 | SMA755/11.4-1.5 | RSMA755/11.4-1.5 |
| Φ1.37 | SMA755/11.4-1.37 | RSMA755/11.4-1.37 |
| Φ1.32 | SMA755/11.4-1.32 | RSMA755/11.4-1.32 |
| Φ1.13 | SMA755/11.4-1.13 | RSMA755/11.4-1.13 |
| Φ0.98 | SMA755/11.4-0.98 | RSMA755/11.4-0.98 |
| Φ0.81 | SMA755/11.4-0.85 | RSMA755/11.4-0.85 |

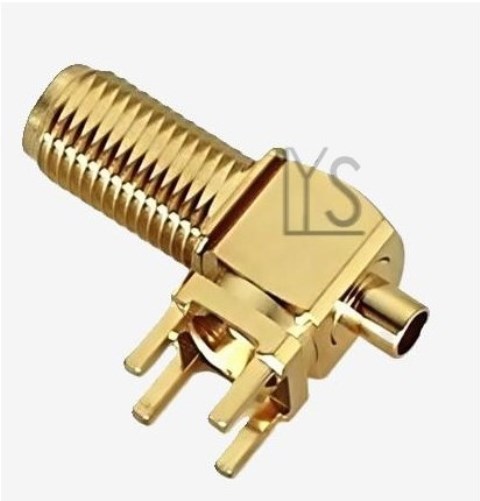

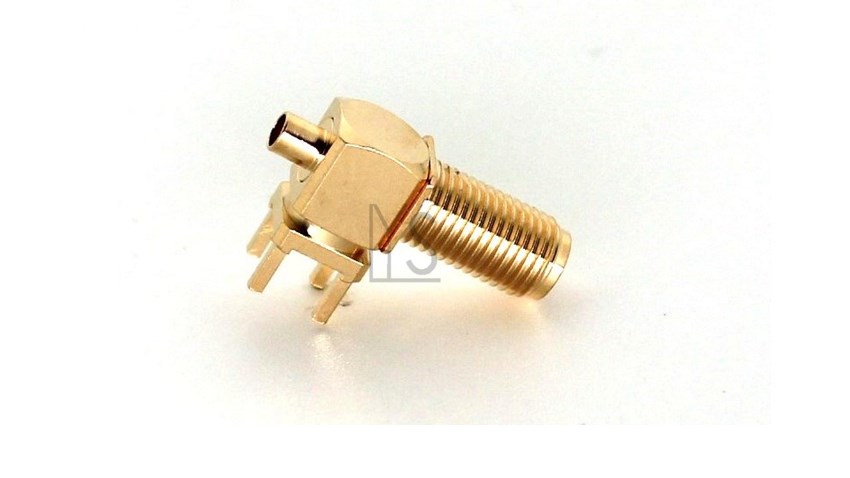

SMA Female Bulkhead For PCB & Mini Coaxial Cable Connector
