PRODUCT ITEM
- (P / NO)
- SPEC.

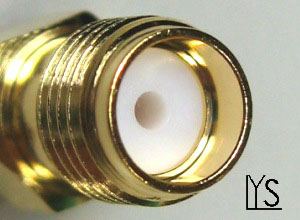

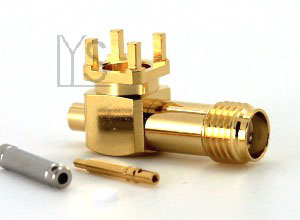

- RG178｜Φ1.37｜Φ1.13｜Φ0.81, for PCB & Cable, RP-SMA Female Crimp connector
- LYS CLASS NO.
- RSMA755L-OD Series
- PATENT
- Ferrule / Retainer
| LIH YEU SHENG Industries Co.,LTD. | ||||
|
※ With 4 different kind of versions: A, B, C, and D ※ Height is from the center line of interface to the PCB. |
||||
| P / No. | Height (mm) | Impedance | Length | Finish |
| RSMA755LA-OD | 6.4 | 50Ω | 21.6mm | Gold or Nickel |
| RSMA755LB-OD | 5.5 | |||
| RSMA755LC-OD | 4.4 | |||
| RSMA755LD-OD | 5.8 | |||
| ● "OD" means a series of different cable types, included RG178/ Φ1.5(also fit Φ1.48)/ Φ1.37/ Φ1.32/ Φ1.13/ Φ0.98/ Φ0.85(also fit Φ0.81). | ||||
| ● e.g.1. Your requirements are included Height--6.4mm & cable type--RG178 → P/No.: RSMA755LA-178 | ||||
| ● e.g.2. Your requirements are included Height--4.4mm & cable type--Φ0.81 → P/No.: RSMA755LC-0.85 | ||||
RP-SMA Female For PCB & Cable
