PRODUCT ITEM
- (P / NO)
- SPEC.

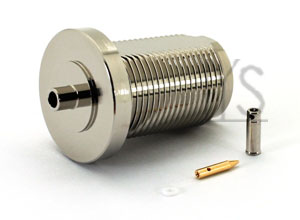

- RG178～0.81, Reverse Thread, IP67 N Female S/T BH Crimp
- LYS CLASS NO.
- N825R/30.4 -- For Mini Coaxial
- PATENT
- Anti-Slip Annular Section ｜ Ferrule, Retainer
• IP Rating：IP67 and Isolated IP67
• Impedance：50Ω | Finish：Nickel
• Reverse Thread
| LIH YEU SHENG Industries Co.,LTD. | ||
| Flange：Φ20.5x3.2 | Thread：23.3 | Total L.：30.4 | ||
| Coaxial Cable | P / No.(6GHz) | P / No.(10GHz) |
| RG178 | N825R/30.4-178-B | N825R/30.4-178-A |
| Φ1.48 | N825R/30.4-1.5-B | N825R/30.4-1.5-A |
| Φ1.37 | N825R/30.4-1.37-B | N825R/30.4-1.37-A |
| Φ1.32 | N825R/30.4-1.32-B | N825R/30.4-1.32-A |
| Φ1.13 | N825R/30.4-1.13-B | N825R/30.4-1.13-A |
| Φ0.98 | N825R/30.4-0.98-B | N825R/30.4-0.98-A |
| Φ0.81 | N825R/30.4-0.85-B | N825R/30.4-0.85-A |
| Unit：mm | ||

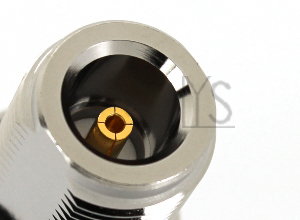

N Female Bulkhead For Mini Coaxial Cable With O-Ring & Reverse Thread
