PRODUCT ITEM
- (P / NO)
- SPEC.
- RG178～0.81, Bulkhead, SMA Female Crimp
- LYS CLASS NO.
- SMA805-OD/A Series for Round Nut
- PATENT
• Impedance：50Ω | Finish：Gold or Nickel
• Frequency(GHz)：DC-6GHz, 12.4GHz
| Thread：11.4 | Panel：3.4(8.0HEX) | Φ9.0 Nut(Circle) | Total L.：18.3 | LIH YEU SHENG Industries Co.,LTD. | |
| Coaxial Cable | P/NO. (SMA) | P/NO. (RP-SMA) |
| RG178 | SMA805-178/A | RSMA805-178/A |
| Φ1.48 | SMA805-1.5/A | RSMA805-1.5/A |
| Φ1.37 | SMA805-1.37/A | RSMA805-1.37/A |
| Φ1.32 | SMA805-1.32/A | RSMA805-1.32/A |
| Φ1.13 | SMA805-1.13/A | RSMA805-1.13/A |
| Φ0.98 | SMA805-0.98/A | RSMA805-0.98/A |
| Φ0.81 | SMA805-0.85/A | RSMA805-0.85/A |
| Unit：mm | ||

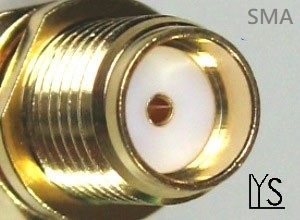

SMA Female Bulkhead Crimp Type For Mini Coaxial Cable Connector
