PRODUCT ITEM
- (P / NO)
- SPEC.

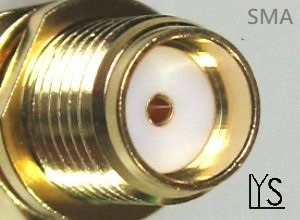

- RG178～0.81, Bulkhead Front Mount, SMA Female Crimp
- LYS CLASS NO.
- SMA805C Series - for Min Coaxial Cable
- PATENT
• Impedance：50Ω | Finish：Gold or Nickel
• Frequency(GHz)：DC-6GHz, 12.4GHz

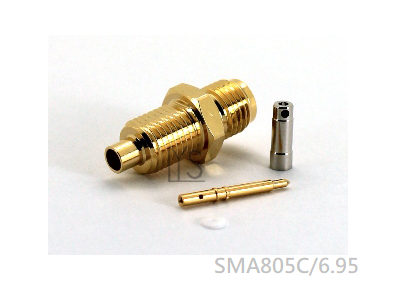

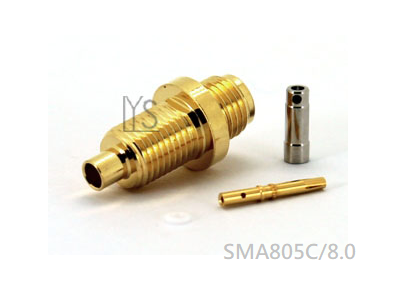

| Rear Mount Thread：8.0 | Rear Mount Thread：6.95 | LIH YEU SHENG Industries Co.,LTD. | ||
| Coaxial Cable | P /No. (SMA) | P /No. (RP-SMA) | P /No. (SMA) | P /No. (RP-SMA) |
| RG178 | SMA805C/8.0-178 | RSMA805C/8.0-178 | SMA805C/6.95-178 | RSMA805C/6.95-178 |
| Φ1.48 | SMA805C/8.0-1.5 | RSMA805C/8.0-1.5 | SMA805C/6.95-1.5 | RSMA805C/6.95-1.5 |
| Φ1.37 | SMA805C/8.0-1.37 | RSMA805C/8.0-1.37 | SMA805C/6.95-1.37 | RSMA805C/6.95-1.37 |
| Φ1.32 | SMA805C/8.0-1.32 | RSMA805C/8.0-1.32 | SMA805C/6.95-1.32 | RSMA805C/6.95-1.32 |
| Φ1.13 | SMA805C/8.0-1.13 | RSMA805C/8.0-1.13 | SMA805C/6.95-1.13 | RSMA805C/6.95-1.13 |
| Φ0.98 | SMA805C/8.0-0.98 | RSMA805C/8.0-0.98 | SMA805C/6.95-0.98 | RSMA805C/6.95-0.98 |
| Φ0.81 | SMA805C/8.0-0.85 | RSMA805C/8.0-0.85 | SMA805C/6.95-0.85 | RSMA805C/6.95-0.85 |
| Unit：mm | ||||
SMA&RP-SMA Female Bulkhead Front Mount Crimp Type For Mini Coaxial Cable Connector
