  • (P / NO)
SPEC.

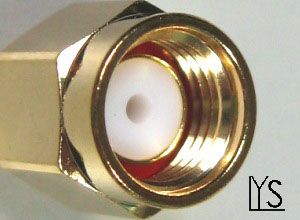

SMA Male S/T for Antenna
LYS CLASS NO.
SMA400 & SMA400/2 Series
PATENT
C-Ring

● 防水等級：IP67 (SMA公母對接後)

● 阻抗：50Ω；電鍍：金或鎳

● 使用頻率：DC ~ 6GHz

● SMA和RP-SMA差異?

立宇盛工業股份有限公司
尾端尺寸 總長度 產品編號(SMA) 產品編號(RP-SMA)
細管：Φ3.6xΦ4.3x13.8 22.2 SMA400 RSMA400
細管.兩段壓紋：Φ3.6xΦ5.4x13.0 23.5 SMA400/2 RSMA400/2
壓直紋：Φ1.8xΦ5.7x6.5 16.9 SMA400/4 RSMA400/4
壓花：Φ1.8 x Φ5.4 x 6.0 16.4 --- RSMA400/5
單位: mm

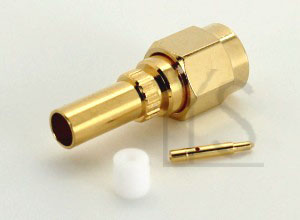

SMA Male Straight For Antenna
