PRODUCT ITEM
- (P / NO)
- SPEC.

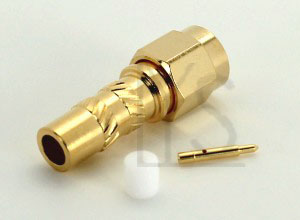

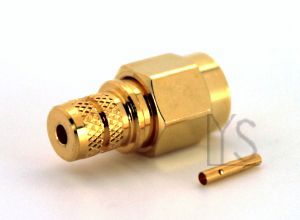

- SMA Male S/T for Antenna
- LYS CLASS NO.
- SMA400 & SMA400/2 Series
- PATENT
- C-Ring
● IP Rating: IP67 (In Mated Condition)
● Impedance: 50Ω; Finish: Gold or Nickel
● Frequency(GHz)：DC-6GHz
| LIH YEU SHENG Industries Co.,LTD. | |||
| Tube Length | Total Length | P / No. (SMA) | P / No. (RP-SMA) |
| Φ3.6xΦ4.3x13.8 | 22.2 | SMA400 | RSMA400 |
| Φ3.6xΦ5.4x13.0 | 23.5 | SMA400/2 | RSMA400/2 |
| Straight Knurl：Φ1.8xΦ5.7x6.5 | 16.9 | SMA400/4 | RSMA400/4 |
| Cross Embossing：Φ1.8 x Φ5.4 x 6.0 | 16.4 | --- | RSMA400/5 |
| Unit: mm | |||
SMA Male Straight For Antenna
