PRODUCT ITEM
- (P / NO)
- SPEC.

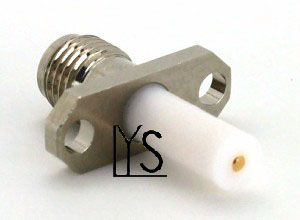

- Various Terminal Posts, Panel Hole, SMA Female
- LYS CLASS NO.
- SMA6X0B, SMA6X8B Series
- PATENT
- Anti-Slip Annular Section
● Impedance：50Ω；Finish：Gold or Nickel
● Frequency(GHz)：DC-6GHz, 12.4GHz, 18GHz
| LIH YEU SHENG Industries Co.,LTD. | |||
| Total Length | Terminal / Shape x Length | P / No.(2 Hole) | P / No.(4 Hole) |
| 19.5 | PTFE Only/ Φ4.1x10.0 | SMA610B-19.5/10 | SMA600B-19.5/10 |
| 21.0 | PTFE Only/ Φ4.1x11.5 | SMA610B-21/11.5 | SMA600B-21/11.5 |
| 10.8 | Solt/ 0.4x1.3 | SMA612B-10.8 | SMA602B-10.8 |
| 14.6 | Solder Cup/ Φ1.27x5.1 | SMA613B-14.6 | SMA603B-14.6 |
| 14.6 | Solder Cup/ Exposed PTFE Φ4.1x3.0 | SMA613B-14.6/3.0 | SMA603B-14.6/3.0 |
| 12.0 | Half Round/ 0.8x2.5 | SMA616B-12 | SMA606B-12 |
| 15.5 | Half Round/ Exposed PTFE 4.1 |
SMA616B-15.5 | SMA606B-15.5 |
| 12.0 | Tab/ 0.15x2.5 | SMA617B-12 | SMA607B-12 |
| 20.5 | Tab/ 0.13x1.9 Exposed PTFE: 9.1 |
SMA617B-20.5/9.1 | SMA607B-20.5/9.1 |
| 11.0 | Thin Post/ Φ0.3x1.5 | SMA618B-11 | SMA608B-11 |
| 12.0 | Thin Post/ Φ0.5x2.5 | SMA618B-12 | SMA608B-12 |
| 14.1 | Thin Post/ Φ0.5 Exposed PTFE: Φ2.2x3.3 |
SMA618B-14.1/3.3 | SMA608B-14.1/3.3 |
| ★ RP-SMA Interface | |||
| Total Length | Terminal / Shape x Length | P / No.(2 Hole) | P / No.(4 Hole) |
| 15.5 | Half Round/ Exposed PTFE 4.1 |
RSMA616B-15.5 | RSMA606B-15.5 |
| Unit: mm | |||
★ If need the Body with Stainless Steel (SUS303), please let us know when enquiry.
