- Edge, Φ0.5/Φ0.78 Post, S/T, SMA Female for PCB
- LYS CLASS NO.

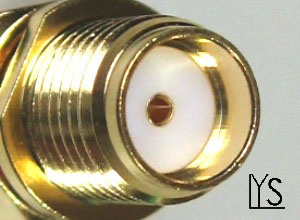

- SMA761 Series – Bulkhead
- PATENT
• Impedance: 50Ω | Finished: Gold or Nickel
• Frequency(GHz)：DC-6GHz, 12.4GHz, 18GHz
| Center conductor| Φ0.5x2.3 | LIH YEU SHENG Industries Co.,LTD. | |||
|
Pitch of Feet
|
P / No. (SMA)
No accessories
|
P / No. (SMA)

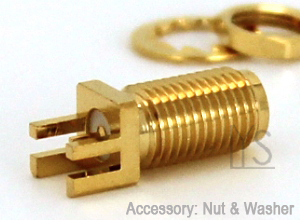

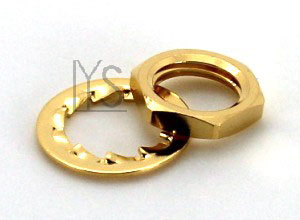

With SMA Nut & Washer
|
P / No. (RP-SMA)
No accessories
|
P / No. (RP-SMA)
With SMA Nut & Washer
|
| 1.00 | SMA761-16.6/1.0 | SMA761/1-16.6/1.0 | RSMA761-16.6/1.0 | RSMA761/1-16.6/1.0 |
| 1.35 | SMA761-16.6/1.35 | SMA761/1-16.6/1.35 | RSMA761-16.6/1.35 | RSMA761/1-16.6/1.35 |
| 1.60 | SMA761-16.6/1.6 | SMA761/1-16.6/1.6 | RSMA761-16.6/1.6 | RSMA761/1-16.6/1.6 |
| 1.73 | SMA761-16.6/1.73 | SMA761/1-16.6/1.73 | RSMA761-16.6/1.73 | RSMA761/1-16.6/1.73 |
| Center conductor| Φ0.78, length as feet4.0 | LIH YEU SHENG Industries Co.,LTD. | |||
|
Pitch of Feet
|
P / No. (SMA)
No accessories
|
P / No. (SMA)
With SMA Nut & Washer
|
P / No. (RP-SMA)
No accessories
|
P / No. (RP-SMA)
With SMA Nut & Washer
|
| 0.8 | SMA761-17.4/0.8 | SMA761/1-17.4/0.8 | RSMA761-17.4/0.8 | RSMA761/1-17.4/0.8 |
| 0.9 | SMA761-17.4/0.9 | SMA761/1-17.4/0.9 | RSMA761-17.4/0.9 | RSMA761/1-17.4/0.9 |
| 1.6 | SMA761-17.4/1.6 | SMA761/1-17.4/1.6 | RSMA761-17.4/1.6 | RSMA761/1-17.4/1.6 |
| Unit：mm | ||||

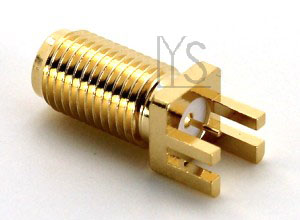

SMA&RP-SMA Female Straight Edge Type For PCB Terminal Φ0.5/Φ0.78mm Post
