SPEC.: Edge, 0.8｜1.0｜1.22｜1.6｜1.73mm PCB,SMA(RP-SMA) Female S/T PCB Terminal Tab connector

● Total Length: 14.3mm

● Impedance：50Ω；Finish：Gold or Nickel

● Contact of Pin of Part Number:

SMA=SMA Female with Female Pin、RSMA=SMA Female with Male Pin

● Frequency(GHz)：DC-6GHz, 12.4GHz, 18GHz

LIH YEU SHENG Industries Co.,LTD.
● Interface: SMA Female with Female Pin
Pitch of Feet (mm)	P / No.
0.8	SMA777-0.8
1.0	SMA777-1.0
1.22	SMA777-1.22
1.6	SMA777-1.6
1.73	SMA777-1.73

LIH YEU SHENG Industries Co.,LTD.
● Interface: SMA Female with Male Pin
Pitch of Feet (mm)	P / No.
0.8	RSMA777-0.8
1.0	RSMA777-1.0
1.22	RSMA777-1.22
1.6	RSMA777-1.6
1.73	RSMA777-1.73

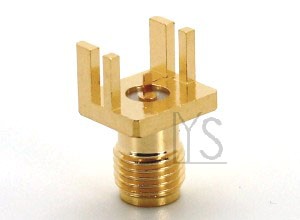

SMA Female Straight Edge Type For PCB Terminal Tab
